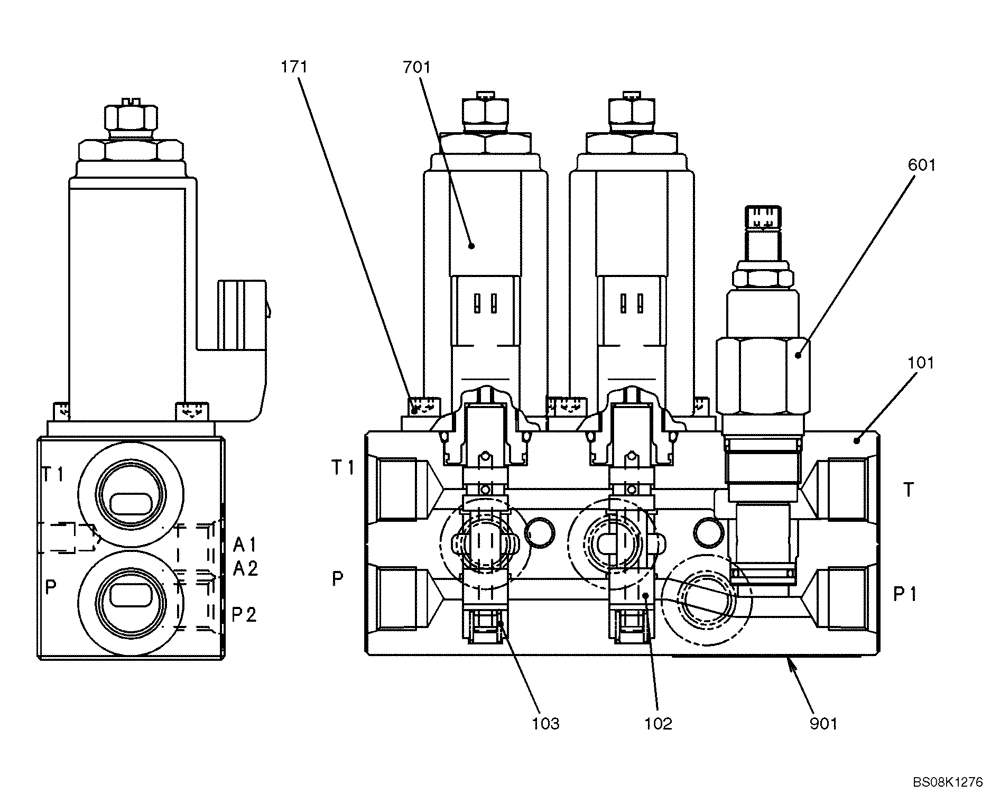

Запчасти Case CX27B BTW (07-039) - VALVE ASSY, SOLENOID (PX35V00003F1) (35) - HYDRAULIC SYSTEMS

VALVE ASSY, SOLENOID, PX35V0003F1

1шт.

101

PX35V00003S101

CASE

1шт.

102

PX35V00003S102

SPOOL

2шт.

103

2436U1459S5

SPRING

2шт.

171

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

Cap

4шт.

601

YR22V00001F1

HYDRAULIC VALVE

Assy, Relief; See Figure 07-040

1шт.

701

PX35V00003S701

SOLENOID

2шт.

901

NSS

NOT SOLD SEPARAT

Name Plate

1шт.
