Запчасти Case CX27B BTW (07-031) - CYLINDER ASSY, BOOM (PV01V00064F1) (35) - HYDRAULIC SYSTEMS

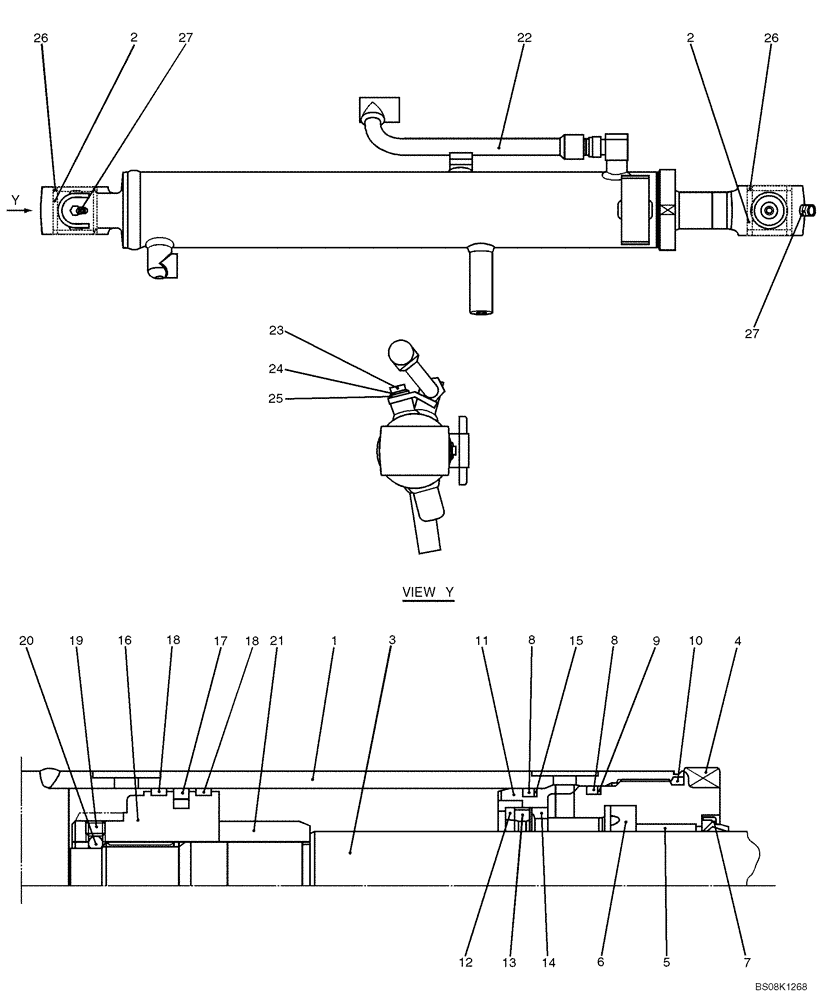

Схема запчастей Case CX27B BTW - (07-031) - CYLINDER ASSY, BOOM (PV01V00064F1) (35) - HYDRAULIC SYSTEMS
17
27
23
2
18
14
5
25
8
26
26
15
12
20
9
10
4
13
7
22
19
27
8
11
16
21
3
2
1
18
24
6

Артикул

Название

Примечание

Количество

CYLINDER ASSY, BOOM, PV01V00064F1

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PV12B01186D1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PV01V00051S004

CYLINDER HEAD

1шт.

5

PM01V00060S031

BUSHING

1шт.

6

2438U477S6

RING

U

1шт.

7

PH01V00004S006

WIPER

Ring

1шт.

8

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

2шт.

9

PR01V00019S008

BACK-UP RING

1шт.

10

ZD12G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

11

PV01V00061S011

HOLDER

HOLDER

1шт.

12

PM01V00059S012

SPACER

1шт.

13

PM01V00059S013

SEAL

Cushion

1шт.

14

PM01V00067S014

COLLAR

COLLAR

1шт.

15

PV01V00021S008

BACK-UP RING

1шт.

16

PV01V00051S016

PISTON

1шт.

17

2438U854S15

RING

Seal

1шт.

18

PV01V00061S018

RING

Slide

2шт.

19

2438U1057S16

SET SCREW

Set Screw

1шт.

20

2436U946S11

BALL

1шт.

21

PM01V00060S022

BEARING

Cushion

1шт.

22

PV01V00053S023

PIPE

Assy

1шт.

23

PM01V00060S025

CAPSCREW

Cap

1шт.

24

ZW22K10000

LOCK WASHER

Lock

1шт.

25

PR01V00002S024

WASHER

1шт.

26

PR01V00002S027

SEAL

Dust

4шт.

27

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

2шт.

PV01V00064R100

REPAIR KIT

Include(s) Items 1, 2, 26

1шт.

PM01V00060R400

REPAIR KIT

Include(s) Items 2, 3, 26

1шт.

PV01V00051R300

REPAIR KIT

Include(s) Items 6, 7, 8, 9, 10, 15, 17, 18

1шт.

Выбрано товаров: 31
