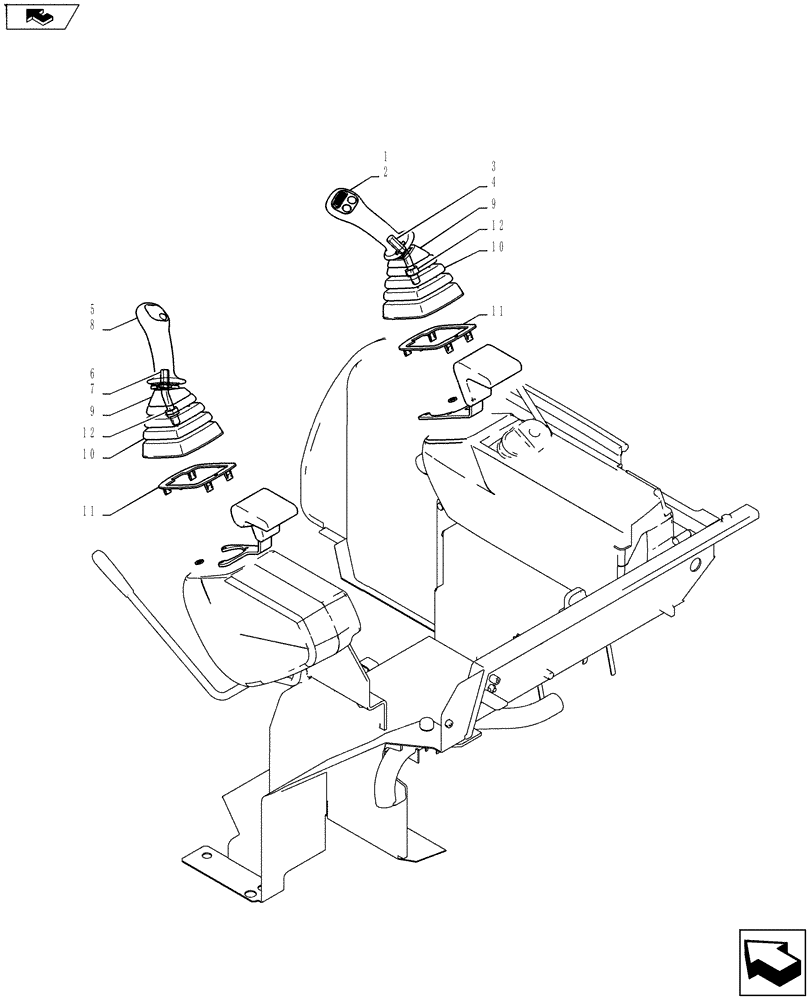

Запчасти Case CX27B ASN (35.355.01) - GRIP ASSY (35) - HYDRAULIC SYSTEMS

.

Grip Assembly PW03M01954F1

1шт.

1

PW03M01955F1

GRIP

Assembly, Rotary and Nibbler & Breaker, (RH - With 1 Button and Proportional) Incl 2 - 4

1шт.

2

PW03M01958F1

HANDLE

1шт.

3

PW03M01945P1

LEVER

1шт.

4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

5

PW03M01955F3

GRIP

Assembly, Nibbler & Breaker, (LH - With 1 Button) Incl 6 - 8

1шт.

6

PW03M01945P1

LEVER

1шт.

7

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

8

PW03M01960F1

HANDLE

1шт.

9

LF03M01004P1

BOOT

2шт.

10

LF03M01008P1

BELLOWS

2шт.

11

YT03M01051P2

PLATE

2шт.

12

ZN18C14011

NUT

2шт.
