Запчасти Case CX27B ASN (35.355.01[01]) - GRIP, ASSY (35) - HYDRAULIC SYSTEMS

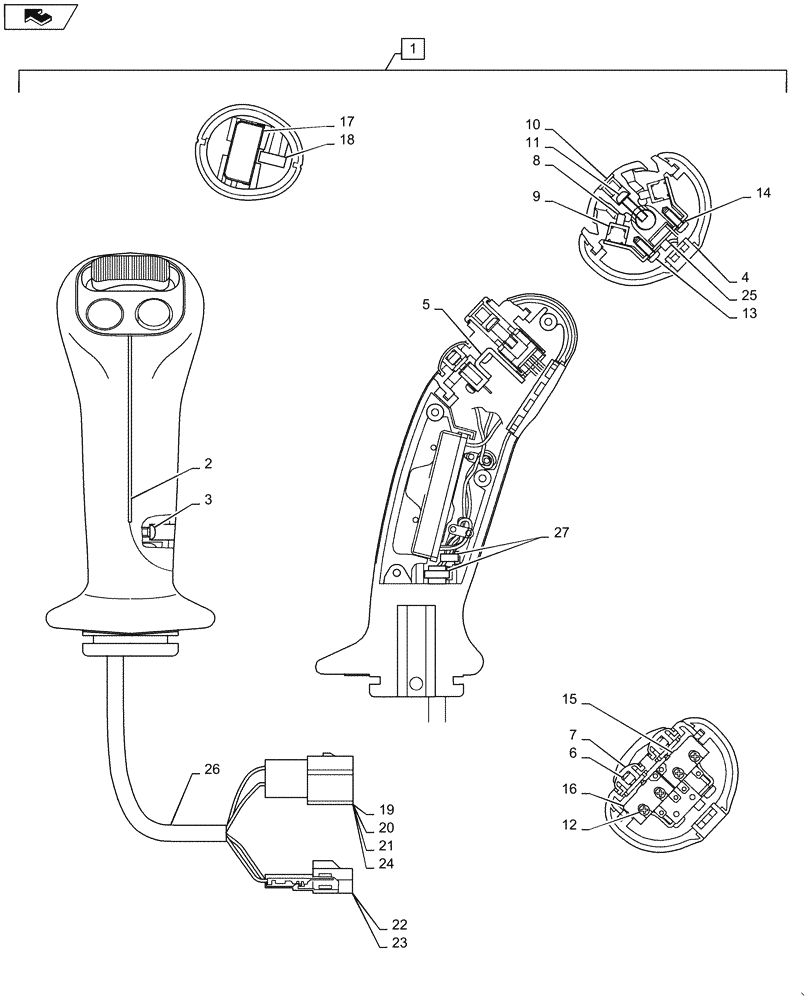

Схема запчастей Case CX27B ASN - (35.355.01[01]) - GRIP, ASSY (35) - HYDRAULIC SYSTEMS
4
9
17
22
12
26
3
6
24
20
21
10
27
16
23
home
5
18
2
15
19
8
14
11
7
25
13
1

Артикул

Название

Примечание

Количество

1

PW03M01955F1

GRIP

Assembly, Rotary and Nibbler & Breaker (RH - With 1 Button and Proportional)

1шт.

2

PW03M01958F1

HANDLE

(RH) Incl 3 - 27

1шт.

1

PW03M01955F2

GRIP

Assembly, Rotary and Nibbler & Breaker (LH - With 1 Button and Proportional)

1шт.

2

PW03M01959F1

HANDLE

(LH) Incl 3 - 27

1шт.

1

PW03M01955F3

GRIP

Assembly, Nibbler & Breaker (LH - With 1 Button)

1шт.

2

PW03M01960F1

HANDLE

(LH) Incl 3 - 27

1шт.

3

ZS32T30016

SELF-TAP SCREW

4шт.

4

PW03M01958S404

PLUG

1шт.

5

PW03M01958S405

BRACKET

1шт.

6

PW03M01958S407

RETAINER

2шт.

6

PW03M01958S409

PLUG

1шт.

7

PW03M01958S408

PLUG

2шт.

8

PW03M01958S411

PISTON

2шт.

9

PW03M01958S421

SPRING

2шт.

10

PW03M01958S451

CAP

1шт.

11

PW03M01958S471

SCREW

1шт.

12

PW03M01958S472

SCREW

4шт.

13

ZS32T30006

SELF-TAP SCREW

3шт.

14

ZS32T30008

SELF-TAP SCREW

1шт.

15

PW03M01958S482

SWITCH

RH Grip Only

1шт.

16

PW03M01959S482

SWITCH

LH Grip Only

1шт.

17

PW03M01958S852

COVER

1шт.

18

PW03M01958S853

CAP

2шт.

19

EN52S01001D6

HYD CONNECTOR

1шт.

20

EN52S01005D6

HOLDER

1шт.

21

PW03M01958S885

TERMINAL CONNECTOR

6шт.

22

PW03M01959S886

HOUSING

LH Grip Only

1шт.

23

PW03M01959S887

TERMINAL CONNECTOR

LH Grip Only

2шт.

24

PW03M01958S888

SEAL

6шт.

25

PW03M01958S889

TERMINAL CONNECTOR

1шт.

26

PW03M01958S891

TUBE

1шт.

27

PW03M01958S892

CLIP

2шт.

Выбрано товаров: 32
