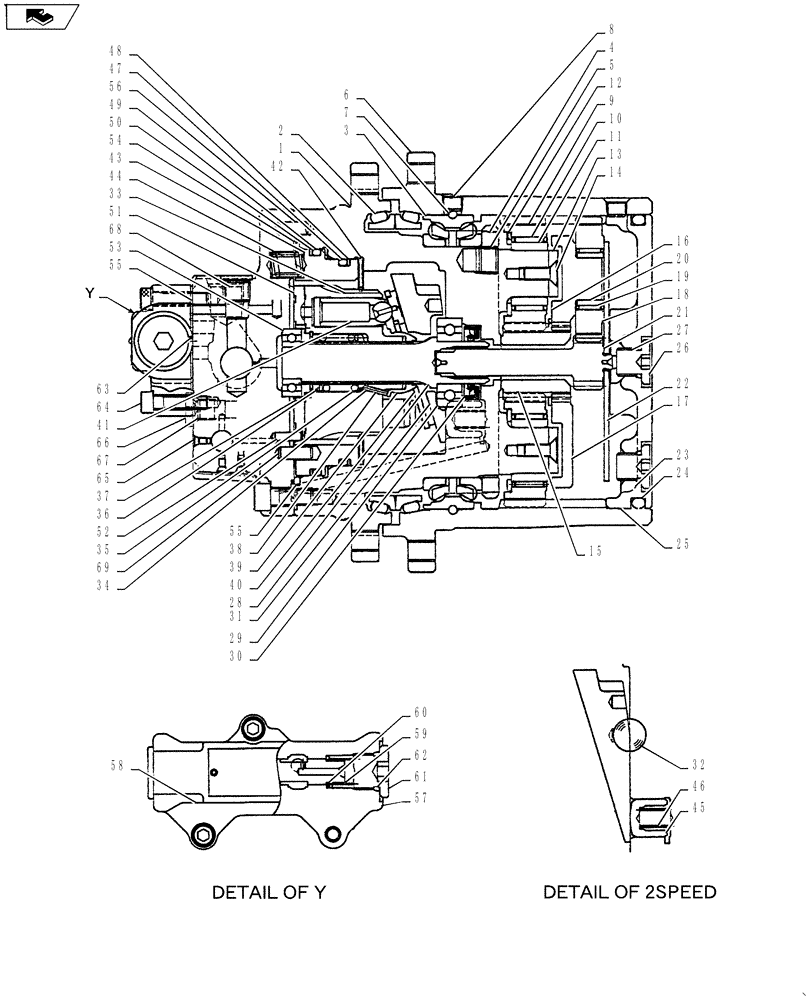

Запчасти Case CX27B ASN (35.353.03) - REDUCTION UNIT, PROPEL (35) - HYDRAULIC SYSTEMS

.

PM15V00021F1

HYDRAULIC MOTOR,671CC

Reduction Unit, Propel Incl 1 - 69

1шт.

1

NSS

NOT SOLD SEPARAT

Holder

1шт.

2

PM15V01004S002

SEAL

2шт.

3

PM15V01004S003

BEARING

1шт.

4

PM15V00015S004

NUT

1шт.

5

PM15V00015S005

PLUG

2шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

2438U988S19

BALL

109шт.

8

ZE82T02000

PLUG

2шт.

9

PM15V00015S009

GEAR

4шт.

10

2441U942S19

BEARING

4шт.

11

PM15V00015S011

RACE

Inner

4шт.

12

PM15V00004S012

WASHER

4шт.

13

PM15V00004S013

PLATE

1шт.

14

2441U942S14

SCREW

4шт.

15

PM15V00015S015

GEAR

Sun

1шт.

16

PM15V00015S016

BAT

Ring

1шт.

17

PV15V00021S017

HOLDER

1шт.

18

PV15V00021S018

GEAR

3шт.

19

PV15V00005S019

NEEDLE BEARING

3шт.

20

PV15V00005S020

RACE

Inner

3шт.

21

PV15V00021S022

DRIVEN GEAR,12 teeth

1шт.

22

PM15V00015S023

THRUST PLATE

1шт.

23

PM15V00015S024

COVER

1шт.

24

ZD12P13000

O-RING

1шт.

25

PV15V00005S029

WIRE

1шт.

26

2441U984S35

PLUG

Fill / Insp

2шт.

27

ZD12P01100

O-RING

6шт.

28

PV15V00002S002

SHAFT

1шт.

29

PV15V00002S003

BEARING, BALL

1шт.

30

PM15V00021S031

GASKET

Oil Seal

1шт.

31

PM15V00021S032

PLATE

1шт.

32

PM15V00015S033

BALL

2шт.

33

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

34

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

35

NSS

NOT SOLD SEPARAT

Spring

1шт.

36

NSS

NOT SOLD SEPARAT

Washer

1шт.

37

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

38

NSS

NOT SOLD SEPARAT

Pin

3шт.

39

NSS

NOT SOLD SEPARAT

Holder

1шт.

40

NSS

NOT SOLD SEPARAT

Plate, Retainer

1шт.

41

NSS

NOT SOLD SEPARAT

Piston Assy

9шт.

42

PM15V00005S016

DISC

Plate

1шт.

43

PM15V00021S044

PISTON

Cylinder

1шт.

44

PM15V00005S018

SPRING

10шт.

45

PM15V00021S046

PISTON ASSY

2шт.

46

PM15V00021S047

SPRING

2шт.

47

PM15V00005S021

O-RING

1шт.

48

PM15V00021S049

BACK-UP RING

1шт.

49

PM15V00005S022

O-RING

1шт.

50

PM15V00021S051

BACK-UP RING

1шт.

51

PV15V00002S025

PILOT VALVE

Plate

1шт.

52

2441U901S19

PIN

1шт.

53

PV15V00002S027

BEARING, BALL

1шт.

54

PM15V00002S021

O-RING

1шт.

55

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

5шт.

56

2441U910S116

PIN

2шт.

57

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

58

NSS

NOT SOLD SEPARAT

Spool

1шт.

59

NSS

NOT SOLD SEPARAT

Spring

2шт.

60

NSS

NOT SOLD SEPARAT

Spring

2шт.

61

NSS

NOT SOLD SEPARAT

Plug

2шт.

62

ZD12P01400

O-RING

2шт.

63

ZD12P01000

O-RING

3шт.

64

ZS23C06025

SCREW,Hex Socket Head, M6 x 25mm

Cap

3шт.

65

PM15V00005S049

PLUG

2шт.

66

LQ15V00007S015

PLUG

2шт.

67

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

68

ZE82T04000

PLUG

1шт.

69

PM15V00021S095

PIN

2шт.

PM15V00021R100

REPAIR KIT

Consists Of Item;24(1), 30(1), 47(1), 48(1), 49(1), 50(1), 54(1), 2(2), 62(2), 67(2), 63(3), 55(5), 27(6)

1шт.

PM15V00021R200

REPAIR KIT

Consists Of Item; 33(1), 34(1), 35(1), 36(1), 37(1), 39(1), 40(1), 38(3), 41(9)

1шт.

PM15V00021R400

REPAIR KIT

Consists Of Item; 55(1), 57(1), 58(1), 59(2), 60(2), 61(2), 62(2), 63(3)

1шт.
