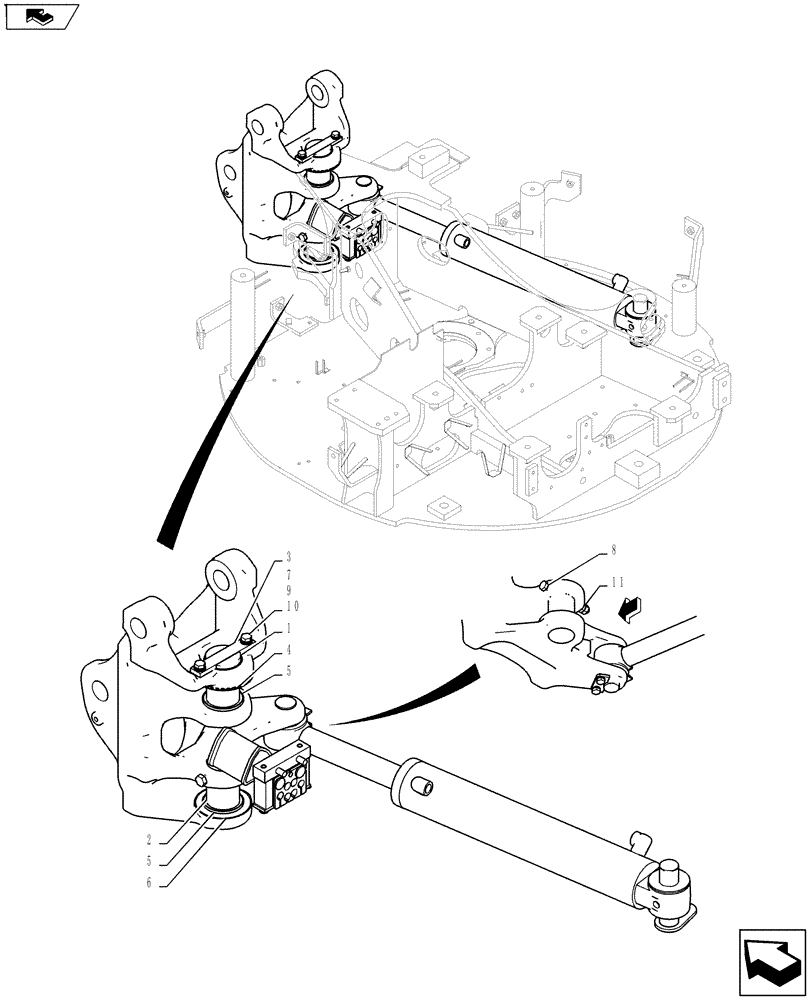

Запчасти Case CX27B ASN (35.352.02) - SWING BRACKET INSTALL (35) - HYDRAULIC SYSTEMS

Swing Bracket Install PV02B00145F1

1шт.

1

PV02B01306P1

PIN

1шт.

2

PV02B01307P1

PIN

1шт.

3

PM02B01332P1

PLATE

1шт.

4

PM02B01247P1

WASHER

1шт.

5

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

Dust

2шт.

6

PM02B01231P1

SHIM,0.5mm Thk

(0.5)

1шт.

7

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

8

HS18C12135G1

BOLT

1шт.

9

ZW26X10000

LOCK WASHER

2шт.

10

ZW16X10000

WASHER

2шт.

11

ZN18C12010

NUT

2шт.
