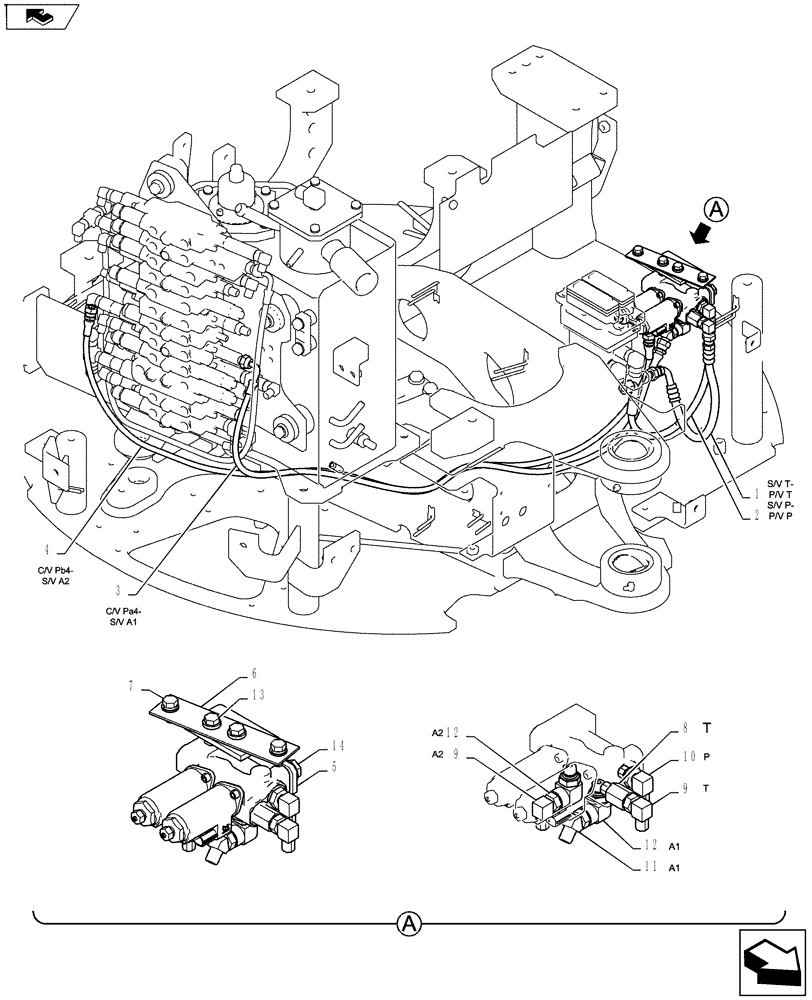

Запчасти Case CX27B ASN (35.322.18) - CONTROL LINES, VALVE (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

Control Lines, Valve (Nibbler & Breaker) PV64H00022F1

1шт.

Valve Assembly Solenoid PW35V00002F1

1шт.

1

HX32L04040DX

FLEXIBLE HOSE

1шт.

2

HX34L04040DX

HOSE

1шт.

3

HX33L03115DX

HOSE,4.8mm ID x 1150mm L

1шт.

4

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

5

PW64H01103P1

BRACKET, SUPPORTING

1шт.

6

PW64H01089P1

SUPPORT

1шт.

7

ZM22C08020

BOLT

Sems

2шт.

8

2444Z2525

HYD CONNECTOR

1шт.

9

HH35S04004G1

90 ELBOW

2шт.

10

HH35S04004G2

90 ELBOW

1шт.

11

HH45S04004G1

45 ELBOW

1шт.

12

2444Z2894

90 ELBOW

2шт.

13

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

14

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.
