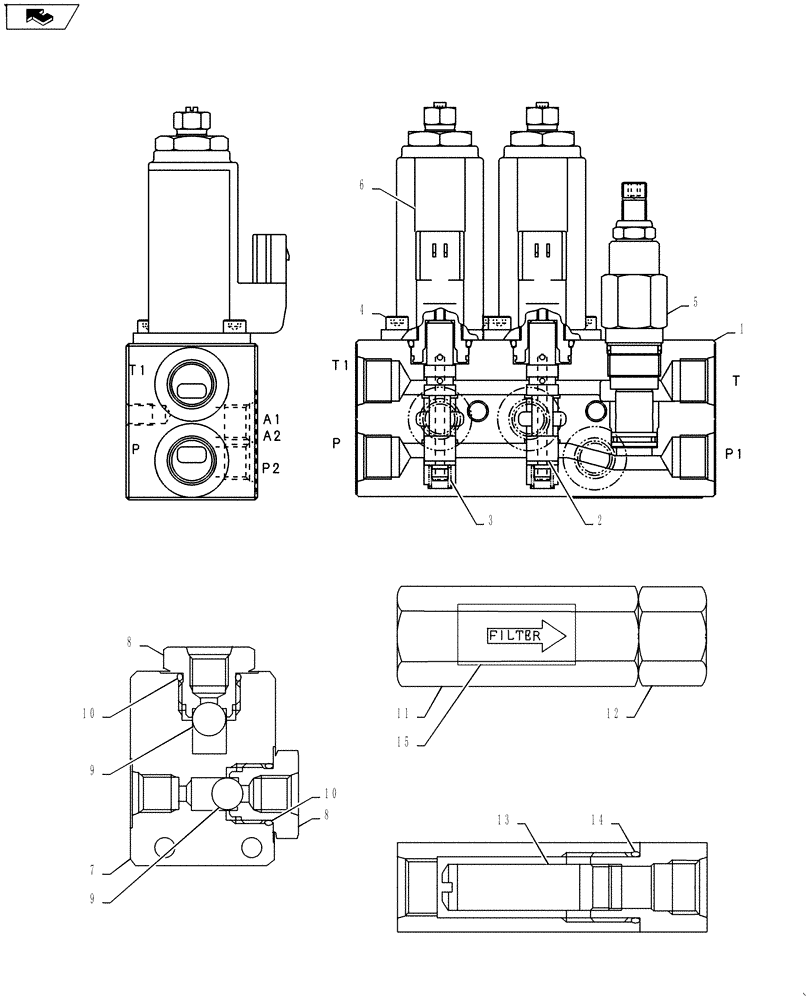

Запчасти Case CX27B ASN (35.322.17) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

.

Control Lines, Valve PM64H00048F1

1шт.

.

PX35V00003F1

VALVE

Solenoid Valve Assembly, Incl 1 - 6 Assembly, Solenoid (Used for Lever Lock, 2-speed Select)

1шт.

1

PX35V00003S101

CASE

Body

1шт.

2

PX35V00003S102

SPOOL

2шт.

3

2436U1459S5

SPRING

2шт.

4

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

4шт.

5

YR22V00001F1

HYDRAULIC VALVE

Relief

1шт.

6

PX35V00003S701

SOLENOID

2шт.

7

PH26V00001F1

VALVE

Shuttle, Incl 7 - 10

1шт.

7

PH26V00001S001

BODY

Block

1шт.

8

PH26V00001S002

HYD CONNECTOR

2шт.

9

PH26V00001S003

BALL

2шт.

10

ZD12P01800

O-RING

2шт.

11

YN50V00020F1

HYDRAULIC OIL FILTER

Inline, Incl 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Case

1шт.

12

NSS

NOT SOLD SEPARAT

Connector

1шт.

13

NSS

NOT SOLD SEPARAT

Strainer

1шт.

14

ZD12P01800

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

Label

1шт.
