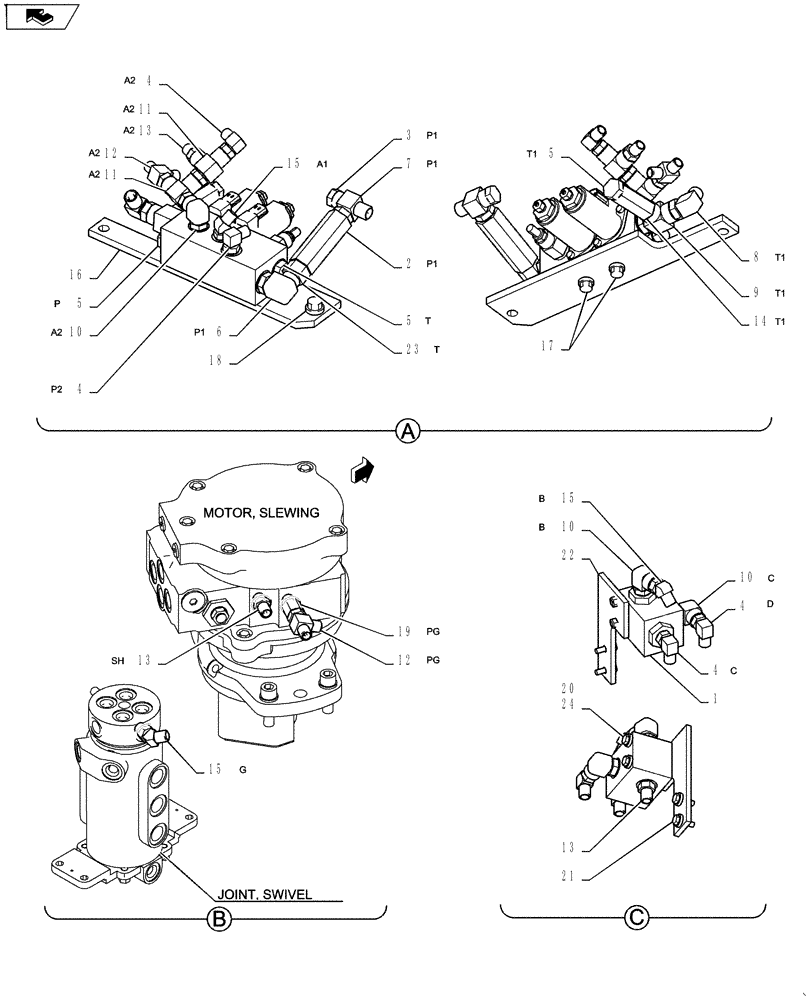

Запчасти Case CX27B ASN (35.322.16) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

Control Lines, Valve PM64H00048F1

1шт.

Valve Assembly Solenoid PX35V00003F1

1шт.

1

PH26V00001F1

VALVE

Shuttle

1шт.

2

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

3

ZE72X04000

PLUG

1шт.

4

HH35S04004G1

90 ELBOW

4шт.

5

ZE72X06000

PLUG

3шт.

6

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

7

PF30H01004P1

TEE

1шт.

8

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

9

HH55Q06006G1

TEE

1шт.

10

2444Z2894

90 ELBOW

3шт.

11

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

2шт.

12

HH55L04004G1

TEE

2шт.

13

HH25S04004G1

HYD CONNECTOR

3шт.

14

2444P1098D2

HYD CONNECTOR

1шт.

15

HH45S04004G1

45 ELBOW

3шт.

16

PM64H01059P1

BRACKET

1шт.

17

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

18

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

19

2444Z2525

HYD CONNECTOR

1шт.

20

ZW16H06000

WASHER

2шт.

21

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

2шт.

22

PM64H01063P1

BRACKET

1шт.

23

2444Z3326

HYD CONNECTOR

1шт.

24

ZS18C06065

SCREW,Hex, M6 x 65mm

2шт.
