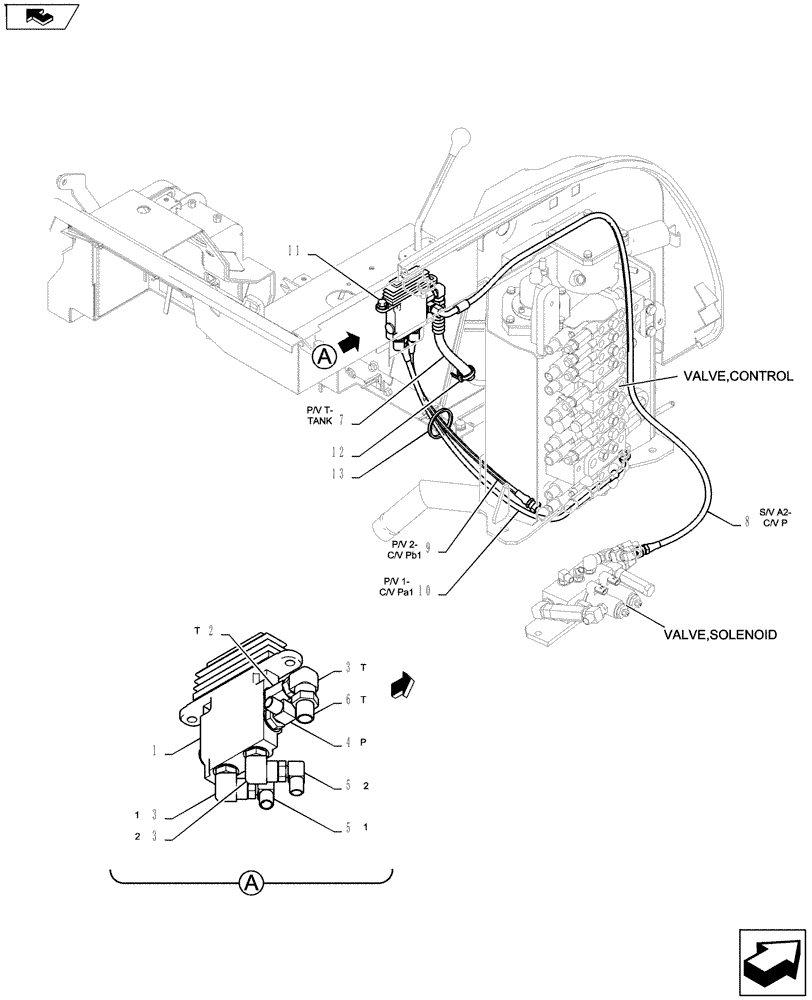

Запчасти Case CX27B ASN (35.322.14) - CONTROL LINES, REMOTE (DOZER) (35) - HYDRAULIC SYSTEMS

Control Lines, Remote (Dozer) PM68H00021F1

1шт.

1

PB30V00002F2

PILOT VALVE

1шт.

2

2444Z2525

HYD CONNECTOR

1шт.

3

2444Z2894

90 ELBOW

3шт.

4

HH35S04004G2

90 ELBOW

1шт.

5

HH35S04004G1

90 ELBOW

2шт.

6

HH25S06004G3

HYD CONNECTOR

1шт.

7

PW68H01023D1

HOSE,9.5mm ID x 250mm L

1шт.

8

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

9

HX23L03044DX

HOSE,4.8mm ID x 440mm L

1шт.

10

HX23L03074DX

HOSE,4.8mm ID x 740mm L

1шт.

11

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

12

ZC16X01800

CLIP

1шт.

13

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
