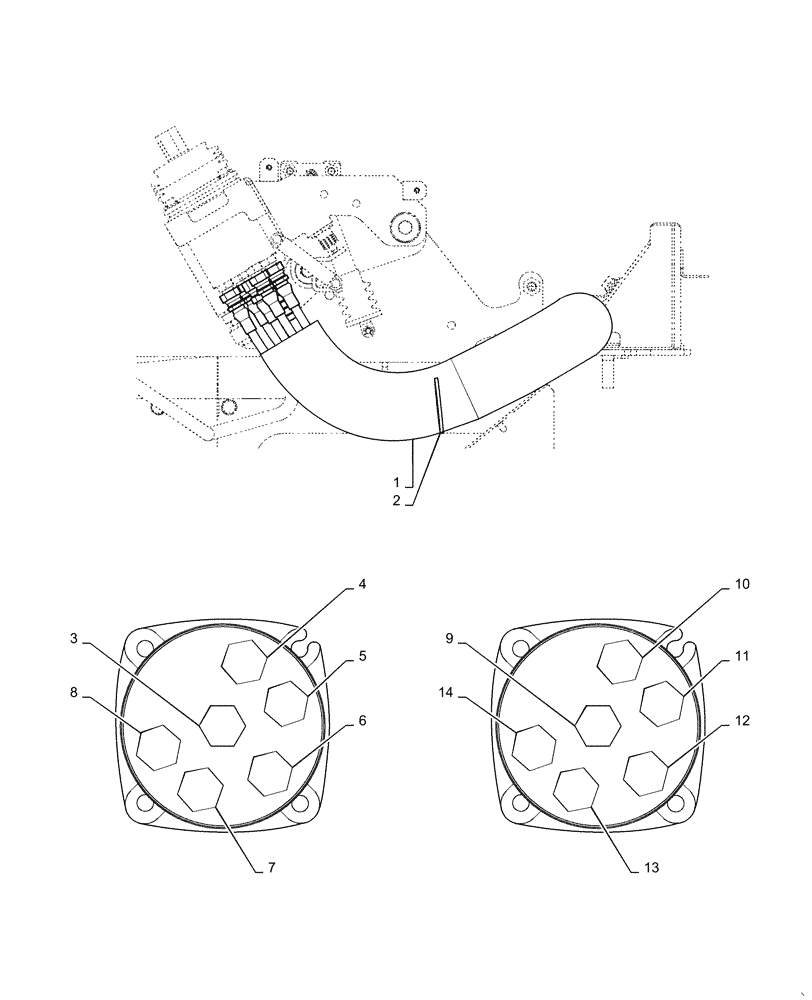

Запчасти Case CX27B ASN (35.322.13[02]) - CONTROL LINES, REMOTE ASN PV13-33808 (35) - HYDRAULIC SYSTEMS

.

Control Lines, Remote, (BHL Multi) PM68H00022F1

1шт.

1

PM68H01057P1

COVER

1шт.

2

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

3шт.

3

HX24L04300DX

HOSE,6.3mm ID x 3000mm L

(LH)

1шт.

4

HX23L03230DG

HOSE

(LH) Arm, Green, Serial Range: PV13-33808-PV13-34067

1шт.

4

HX23L03240DG

HOSE

(LH) Arm, Green, Start Serial: PV13-34068

1шт.

5

HX23L03280DR

HOSE,4.8mm ID x 2800mm L

(LH) Swing, Red

1шт.

6

PW68H01023D8

HOSE,9.5mm ID x 2400mm L

(LH)

1шт.

7

HX23L03230DB

HOSE

(LH) Arm, Blue

1шт.

8

HX23L03310DH

HOSE,4.8mm ID x 3100mm L

(LH) Swing, Gray

1шт.

9

HX34L04155DX

HOSE,6.3mm ID x 1550mm L

(RH)

1шт.

10

HX23L03074DH

HOSE

(RH) Boom, Gray

1шт.

11

HX23L03165DB

HOSE,4.8mm ID x 1650mm L

(RH) Bucket, Blue

1шт.

12

PW68H01023D3

HOSE,9.5mm ID x 880mm L

(RH)

1шт.

13

HX33L03084DG

HOSE

(RH) Boom, Green

1шт.

14

HX33L03190DR

HOSE,4.8mm ID x 1900mm L

(RH) Bucket, Red

1шт.
