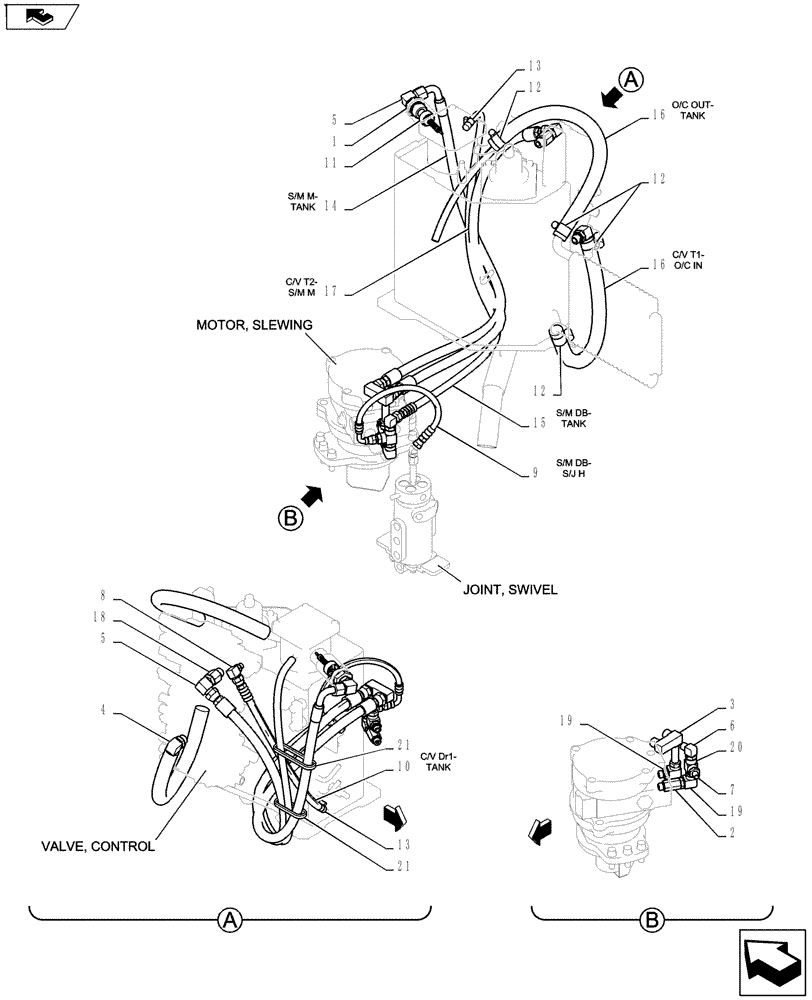

Запчасти Case CX27B ASN (35.322.08) - HYD LINES, RETURN (35) - HYDRAULIC SYSTEMS

Hyd Lines, Return PM32H00006F1

1шт.

1

HH25R16008G1

HYD CONNECTOR

1шт.

2

2444P1098D1

HYD CONNECTOR

1шт.

3

PM32H01011P1

HYD CONNECTOR

1шт.

4

PW32H01028P1

ELBOW

1шт.

5

HH35S08008G1

90 ELBOW

2шт.

6

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

7

HH25S04006G1

90 ELBOW

1шт.

8

HH35S06004G1

90 ELBOW

1шт.

9

HX32L04046DX

HOSE,6.3mm ID x 460mm L

1шт.

10

PW68H01023DC

HOSE,9.5mm ID x 440mm L

1шт.

11

PW21V00003F1

VALVE

Assy.

1шт.

12

ZC16X02800

CLIP

4шт.

13

ZC16X01800

CLIP

2шт.

14

HX32L08120DX

HOSE

1шт.

15

PW68H01023DD

HOSE,9.5mm ID x 1250mm L

1шт.

16

PW32H01026D1

HOSE,19mm ID x 520mm L

2шт.

17

HX22L08115DX

HOSE,12.7mm ID x 1150mm L

1шт.

18

HH25R08008GB

HYD CONNECTOR

1шт.

19

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

2шт.

20

HH55Q06006G1

TEE

1шт.

21

PY01P01043D8

CABLE TIE,102mm L

2шт.
