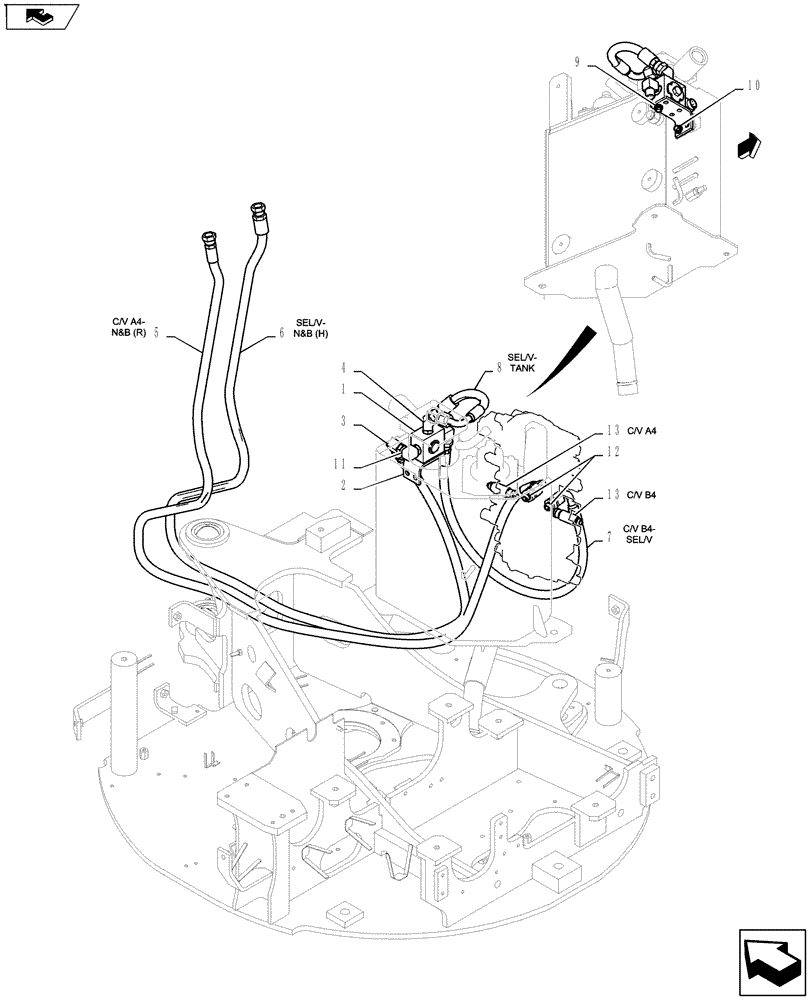

Запчасти Case CX27B ASN (35.322.04) - HYD LINES, UPPER (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

Hyd Lines, Upper (Nibbler & Breaker) PM03H00019F1

1шт.

1

PA30V00005F1

VALVE

Selector

1шт.

2

PM03H01112P1

BRACKET

1шт.

3

HH35S08006G1

90 ELBOW

2шт.

4

HH45S08006G1

45 ELBOW

1шт.

5

PM03H01120D1

HOSE,12.7mm ID x 2550mm L

1шт.

6

PM03H01119D1

HOSE,12.7mm ID x 2630mm L

1шт.

7

HX35L08090DX

HOSE,12.7mm ID x 900mm L

1шт.

8

HX32L08034DX

HOSE,12.7mm ID x 340mm L

1шт.

9

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

10

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

11

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

12

HH25S08006G2

HYD CONNECTOR

2шт.

13

PM22V00005F3

VALVE PRESSURE RELIE

2шт.
