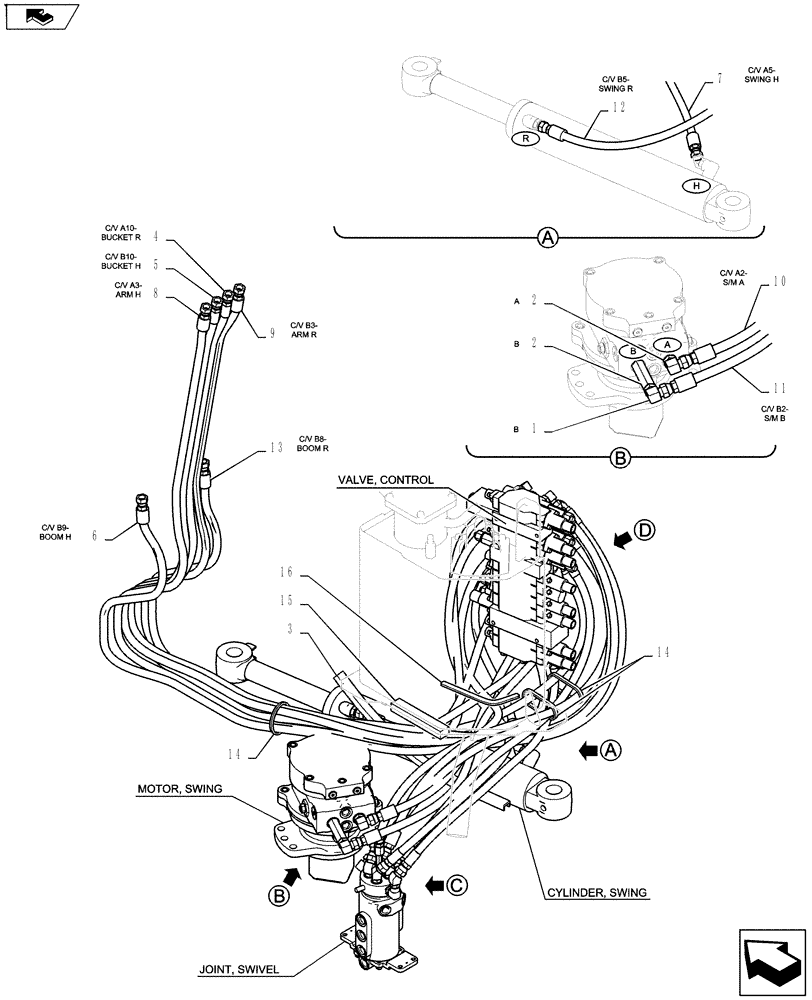

Запчасти Case CX27B ASN (35.322.02) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS

Hyd Lines, Upper PM03H00018F1

1шт.

1

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

6шт.

2

HH25R06006G5

CONNECTION

1шт.

3

YN64H01068D4

RUBBER

1шт.

4

PM03H01117D1

HOSE,9.5mm ID x 2760mm L

1шт.

5

PM03H01117D2

HOSE,9.5mm ID x 2800mm L

1шт.

6

PM03H01118D1

HOSE,9.5mm ID x 2370mm L

1шт.

7

HX35L06062DY

HOSE,9.5mm ID x 620mm L

1шт.

8

PM03H01121D1

HOSE,9.5mm ID x 2600mm L

1шт.

9

PM03H01121D2

HOSE,9.5mm ID x 2520mm L

1шт.

10

HX35L06082DY

HOSE,9.5mm ID x 820mm L

1шт.

11

HX35L06090DY

HOSE,9.5mm ID x 900mm L

1шт.

12

HX35L06098DY

HOSE

1шт.

13

PM03H01118D2

HOSE

1шт.

14

PY01P01043D8

CABLE TIE,102mm L

3шт.

15

PM03H01116D1

RUBBER

1шт.

16

PY52F01022D3

INSULATING PANEL

Trim

1шт.
