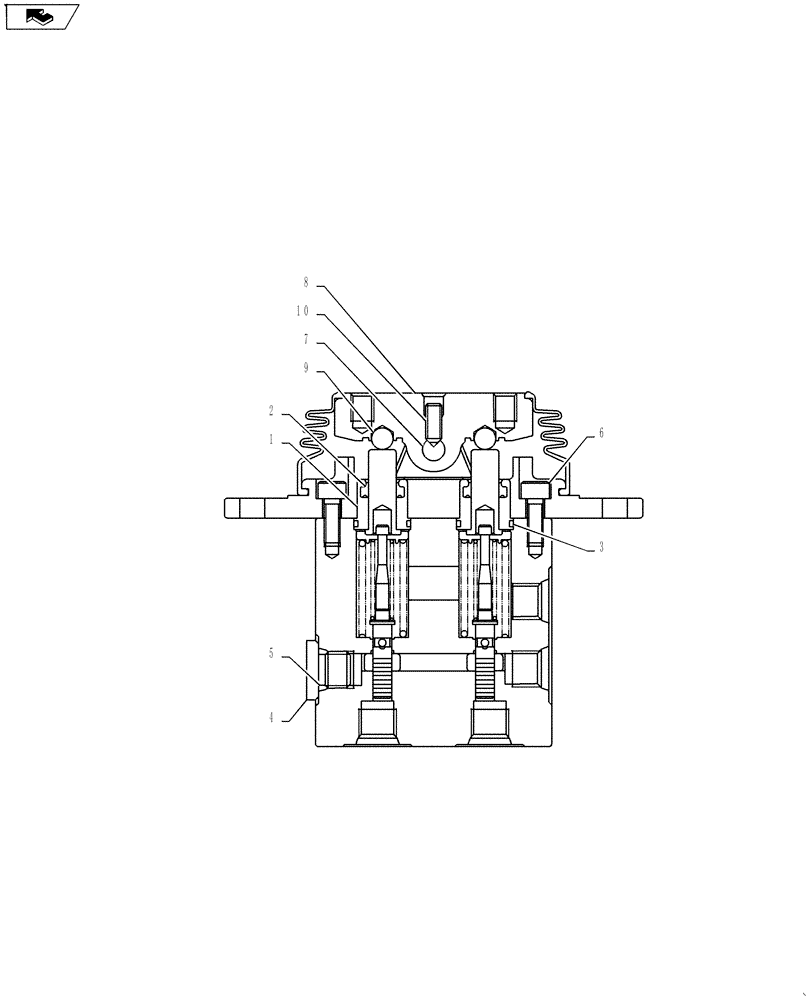

Запчасти Case CX27B ASN (35.310.03) - PILOT VALVE ASSY (DOZER) (35) - HYDRAULIC SYSTEMS

.

PB30V00002F2

PILOT VALVE

(Dozer) Assembly, Incl 1 - 10

1шт.

1

PB30V00002S202

PLUG

2шт.

2

PM30V00019S210

PACKING

2шт.

3

2436U2946S9

O-RING,13.5mm ID x 20.5mm OD x 1mm Thk

2шт.

4

YW30V00001S157

PLUG

1шт.

5

ZD12P01100

O-RING

1шт.

6

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

2шт.

7

NSS

NOT SOLD SEPARAT

Shaft

1шт.

8

NSS

NOT SOLD SEPARAT

Cam

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

2шт.

10

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

PB30V00002R100

REPAIR KIT

Consists Of Item; 7(1), 8(1), 10(1), 9(2)

1шт.
