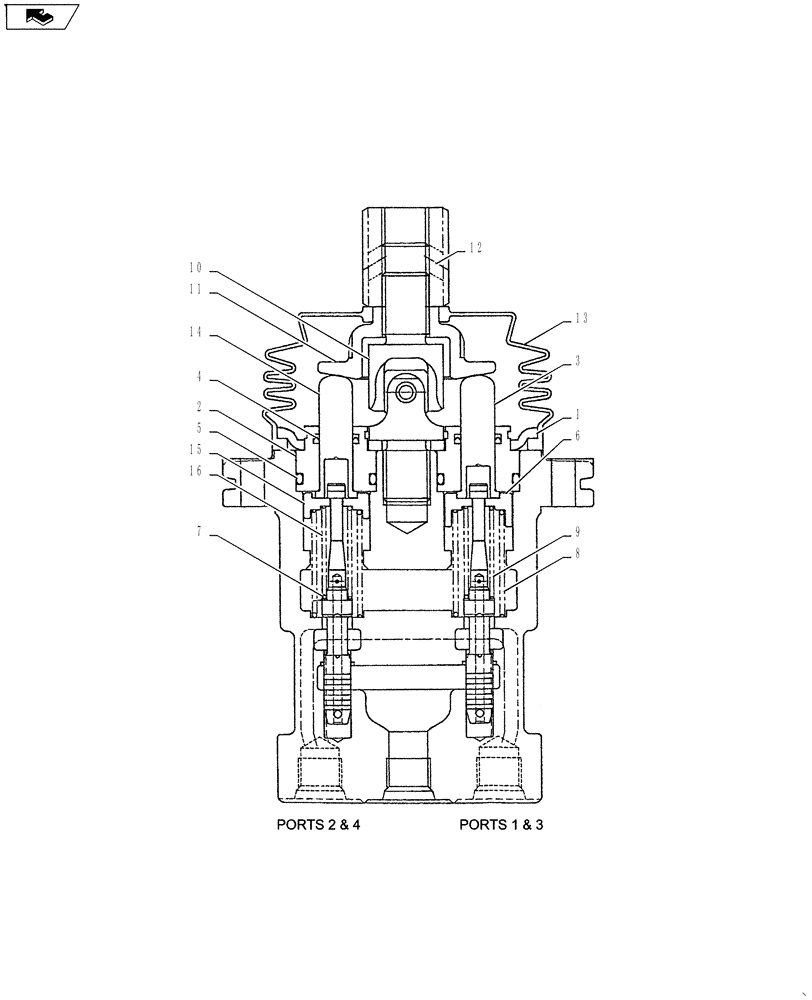

Запчасти Case CX27B ASN (35.310.01) - PILOT VALVE ASSY (LEFT HAND) (35) - HYDRAULIC SYSTEMS

.

PX30V00043F1

VALVE

Pilot Valve Assembly, Incl 1 -16

1шт.

1

YT30V00008S151

PLATE

1шт.

2

2436U1277S211

PLUG

4шт.

3

2436U2155S212

ROD

Push

2шт.

4

2436U1277S213

SEAL

4шт.

5

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

4шт.

6

PX30V00043S216

SEAT

2шт.

7

2436U1277S217

WASHER

4шт.

8

PX30V00043S221

SPRING

4шт.

9

PX30V00043S241

SPRING

2шт.

10

2436U2581S301

FLEXIBLE JOINT

1шт.

11

YT30V00008S302

PLATE

1шт.

12

2436U1242S312

NUT

1шт.

13

YT30V00008S501

BOOT

1шт.

14

PU30V00002S2122

ROD

Push

2шт.

15

PX30V00043S503

SEAT

2шт.

16

PX30V00043S501

SPRING

2шт.
