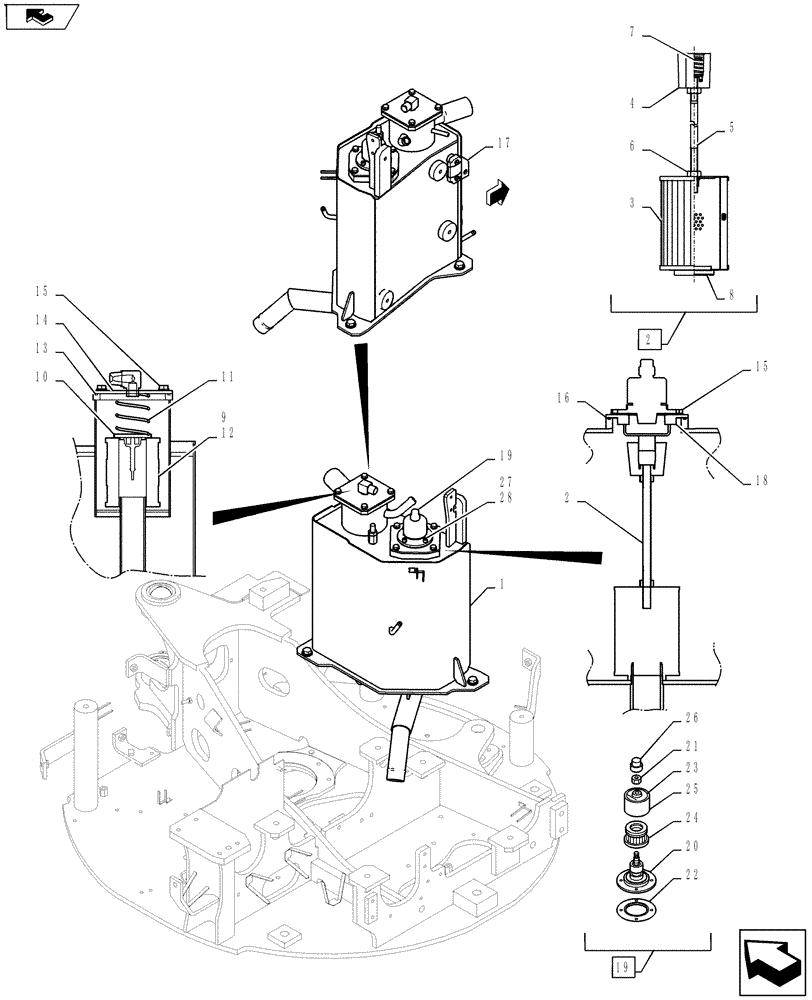

Запчасти Case CX27B ASN (35.300.01) - HYD TANK ASSY (NIBBLER AND BREAKER) (35) - HYDRAULIC SYSTEMS

.

Hydraulic Tank Assembly (Nibbler & Breaker) PM33H00037F1

1шт.

1

PM33H00038P1

TANK

1шт.

2

PW50V00015F2

STRAINER ASSY.

Suction, Includes Ref. 3-8

1шт.

3

PM50V00017S001

FILTER STRAINER

1шт.

4

2446R176S2

HOLDER

1шт.

5

PW50V00015S004

BOLT

1шт.

6

ZN11C10008

NUT

2шт.

7

2446R176S5

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

PW52V01001F2

HYDRAULIC OIL FILTER

Element

1шт.

10

PW21V00004P1

VALVE

Check

1шт.

11

YR52V01001S004

SPRING

1шт.

12

YR52V01003P2

HYDRAULIC OIL FILTER

Element

1шт.

13

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

14

PM33H01083P2

COVER

1шт.

15

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

16

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

17

PM58S00001P1

LEVEL GAUGE

Oil

1шт.

18

PW33H01146P1

COVER

1шт.

19

YN57V00002F4

BREATHER ASSY.

Includes Ref. 20-26

1шт.

20

2446U260S1

BODY

Assy.

1шт.

21

2446U260S5

NUT

1шт.

22

2446U260S8

PACKING

1шт.

23

YN57V00002S007

IDENTITY PLATE

Caution

1шт.

24

YN57V00002S010

ELEMENT

1шт.

25

YN57V00002S011

COVER

1шт.

26

YN57V00002S012

CAP

1шт.

27

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

4шт.

28

ZW26K06000

LOCK WASHER

4шт.

PW52V01001R200

ELEMENT

Consists Of Item: 12(1), 13(1)

1шт.
