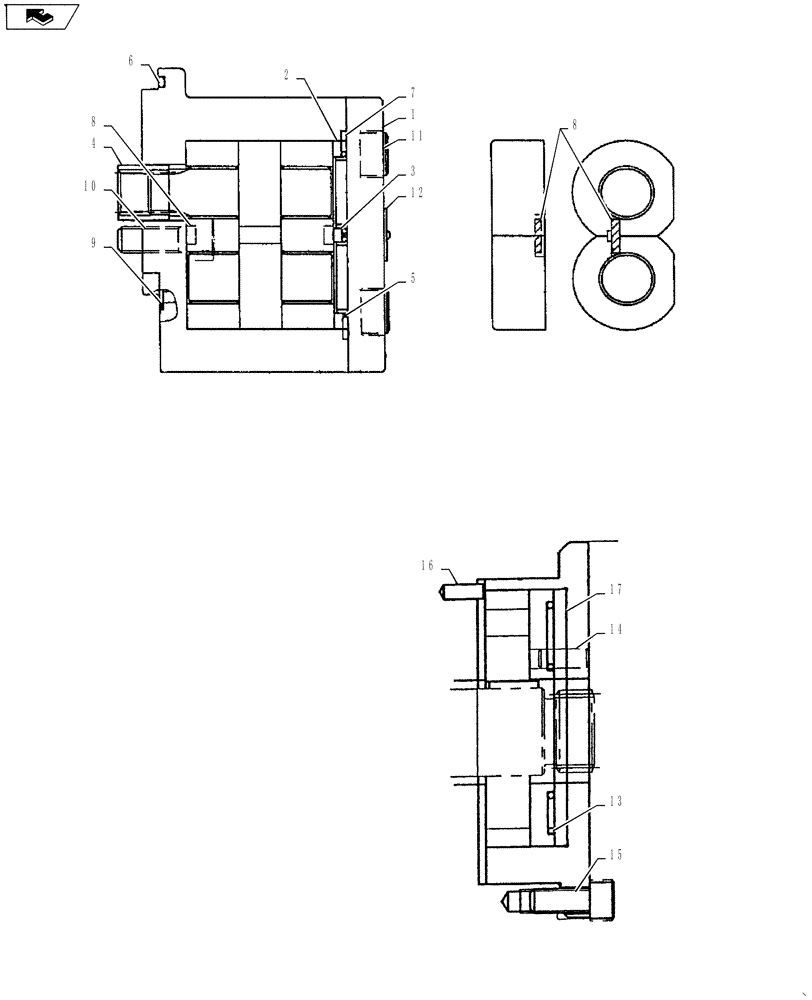

Запчасти Case CX27B ASN (35.106.01) - GEAR PUMP ASSY (35) - HYDRAULIC SYSTEMS

Gear Pump Assembly PM30P00006F1

1шт.

1

PM10V00014S004

COVER

1шт.

2

PX10V00014S010

PLATE

3шт.

3

2441U466S48

GUIDE

2шт.

4

PM10V00014S012

COUPLING

1шт.

5

2441U661S13

O-RING

2шт.

6

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

7

2441U661S11

RING

1шт.

8

2437U392S16

RING

2шт.

9

ZD12P00600

O-RING

1шт.

10

ZS23C10025

SCREW,Hex Socket Head, M10 x 25mm

Cap

2шт.

11

ZS23C10020

SCREW,Hex Socket Head, M10 x 20mm

Cap

4шт.

12

PX10V00014S030

IDENTITY PLATE

1шт.

13

PX10V00015S004

O-RING

1шт.

14

LE10V01001S039

PIN

Spring

1шт.

15

PH10V00007S006

CAPSCREW

3шт.

16

ZP26D03008

PIN

Spring

1шт.

17

PM10V00015S009

PLATE

1шт.
