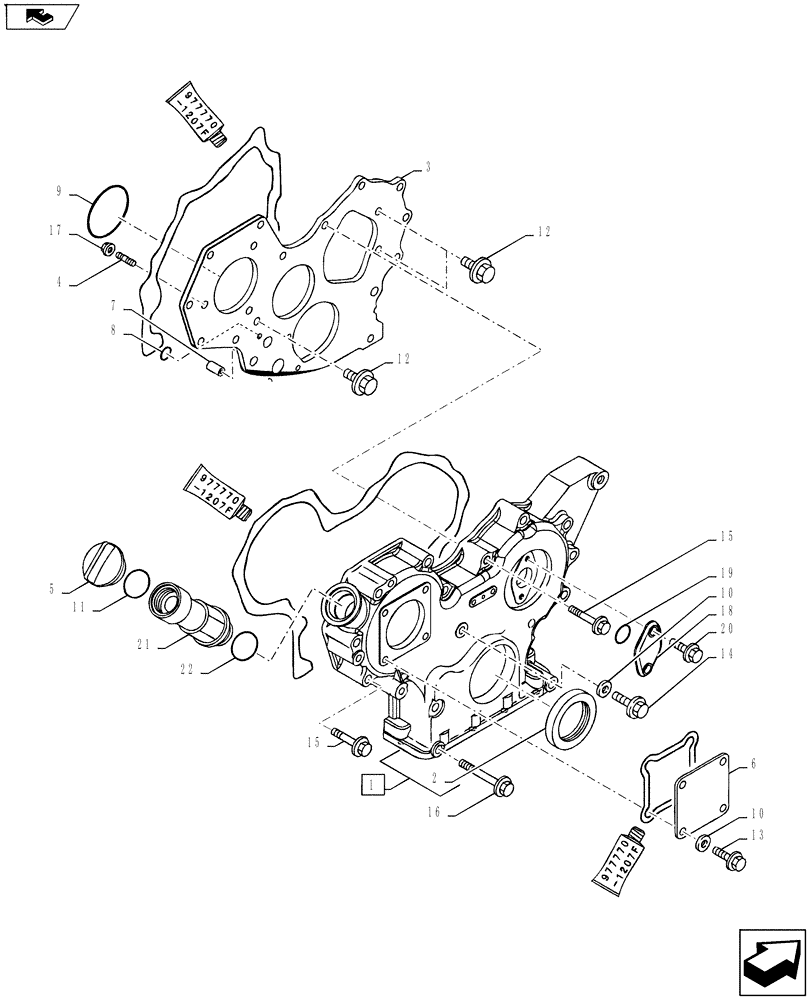

Запчасти Case CX27B ASN (21.120.01) - GEAR HOUSING (21) - TRANSMISSION

1

VV71980301500

CASE

Gear, Includes Ref. 2

1шт.

2

VV11993401800

SEAL

Oil

1шт.

3

VV11980301520

FLANGE

Gear Case

1шт.

4

VV11980201561

BOLT,M8 x 25mm

M8x25

3шт.

5

VV12416001751

CAP

Filler

1шт.

6

VV12424001871

COVER

Pump

1шт.

7

VV12979501950

PIPE

Knock

2шт.

8

VV11960932040

O-RING

P 16

2шт.

9

VV12185051960

O-RING

F.I.Pump

1шт.

10

VV22190080002

SEAL

8S

5шт.

11

VV24311000320

O-RING

1A P-32.0

1шт.

12

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

3шт.

13

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

4шт.

14

VV26106080302

BOLT,M8 x 30mm

M 8x30 Plated

1шт.

15

VV26106080552

BOLT,M8 x 55mm

M 8x55 Plated

12шт.

16

VV26106080852

SCREW,M8 x 85mm

M 8x85 Plated

3шт.

17

VV26306080002

NUT,M8

M8

3шт.

18

VV12102301551

CAP

Tachometer

1шт.

19

VV24341000240

O-RING

1A S-24.0

1шт.

20

VV26106060162

BOLT,M6 x 16mm

M 6x16 Plated

2шт.

21

VV17103111741

PIPE

Oil Feed

1шт.

22

VV24311000320

O-RING

1A P-32.0

1шт.
