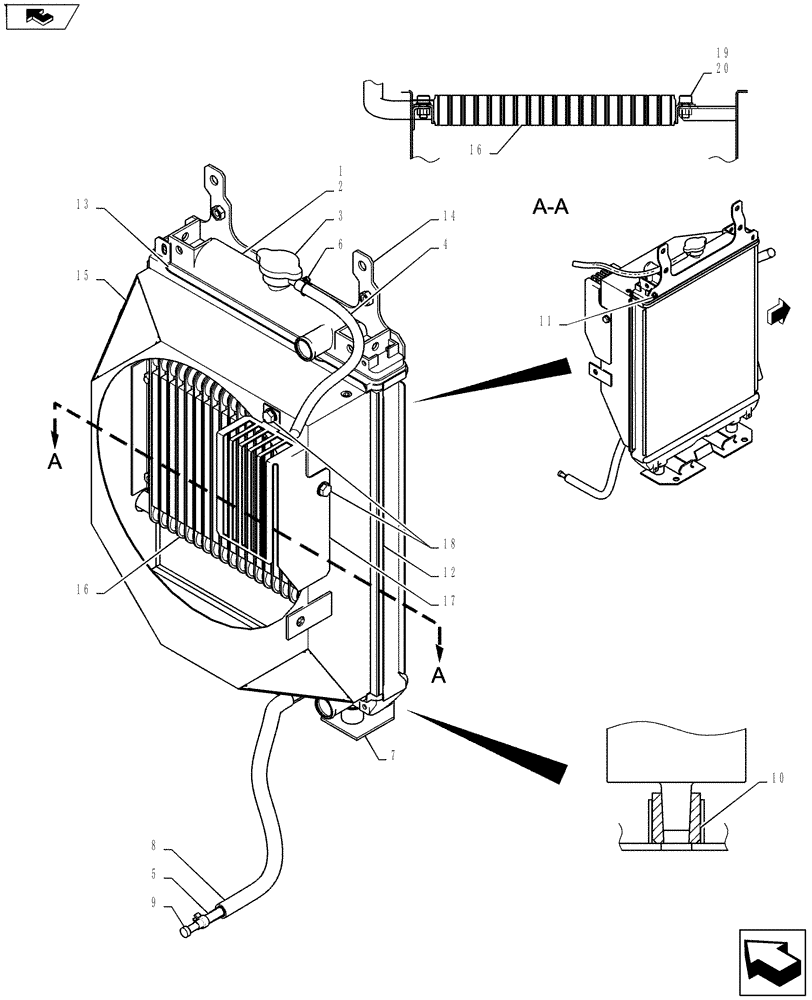

Запчасти Case CX27B ASN (10.406.02) - RADIATOR GROUP (10) - ENGINE

Radiator Group PM05P00014F1

1шт.

1

PM05P00013F1

RADIATOR

1шт.

2

PM05P00013S001

RADIATOR

1шт.

3

PM05P00013S002

RADIATOR CAP

1шт.

4

PM05P00013S003

HOSE

1шт.

5

PM05P00013S004

HOSE

1шт.

6

PM05P00013S005

CLIP

4шт.

7

PM05P01096P1

BRACKET

1шт.

8

PU13E01002DC

TUBE

1шт.

9

PW05P01117P1

PLUG

1шт.

10

PH05P01144P1

RUBBER

2шт.

11

ZM61C06016

BOLT

Sems

2шт.

12

PW05P01098P1

RUBBER

2шт.

13

PM05P01101P1

RUBBER

2шт.

14

PM05P01098P1

BRACKET

1шт.

15

PM05P01133P1

SHROUD

1шт.

16

PM53V00001P1

OIL COOLER

1шт.

17

PM05P01105P1

GUARD

1шт.

18

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.

19

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

Cap

4шт.

20

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

4шт.
