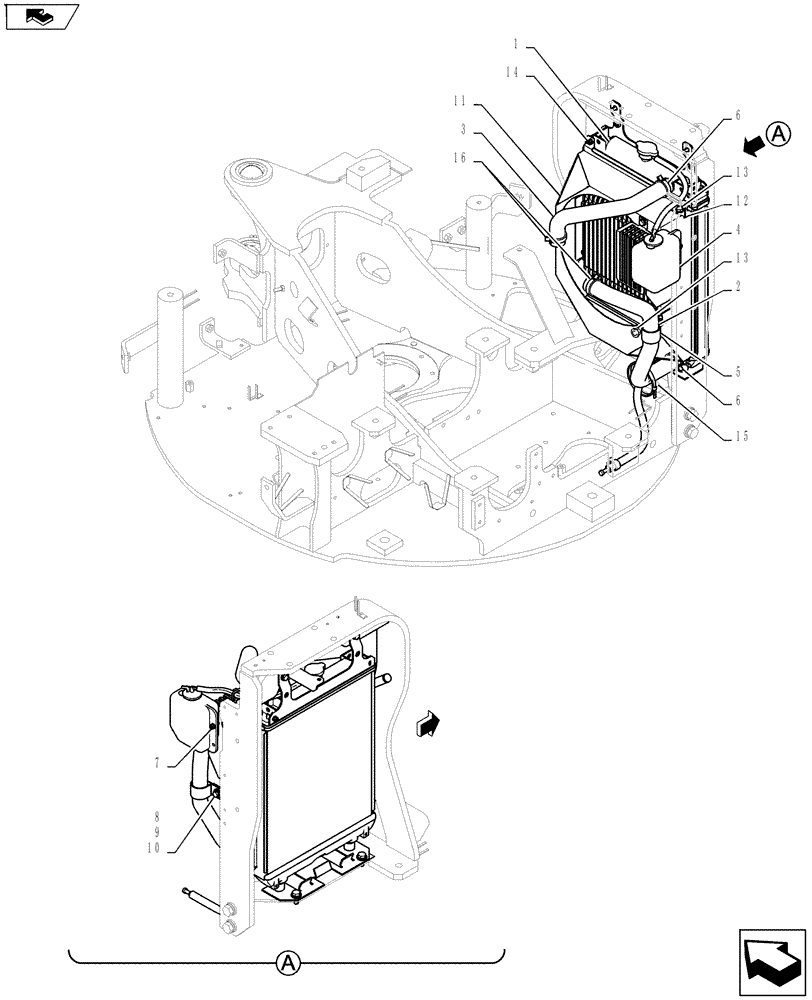

Запчасти Case CX27B ASN (10.406.01) - RADIATOR GROUP (10) - ENGINE

Radiator Group PM05P00014F1

1шт.

1

PM05P00016F1

RADIATOR

Assy.

1шт.

2

PM05P01088P1

HOSE

Radiator

1шт.

3

PM05P01087P1

HOSE

Radiator

1шт.

4

PU01P01024F1

RESERVOIR

Tank Assy., Water, Sub

1шт.

5

ZC46X38014

CLIP

1шт.

6

PH05P01088D3

CLIP

2шт.

7

ZM61C06020

BOLT

Sems

2шт.

8

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

1шт.

9

ZW26X08000

LOCK WASHER

Lock

1шт.

10

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

1шт.

11

PM05P01121F1

SHROUD ASSY.

Radiator

1шт.

12

PM05P01120P1

BRACKET

1шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

14

ZM61C06016

BOLT

Sems

1шт.

15

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

1шт.

16

ZC16X03300

FASTENER

2шт.
