(10.400.01) - COOLING WATER SYSTEM

Запчасти Case CX27B ASN (10.400.01) - COOLING WATER SYSTEM (10) - ENGINE

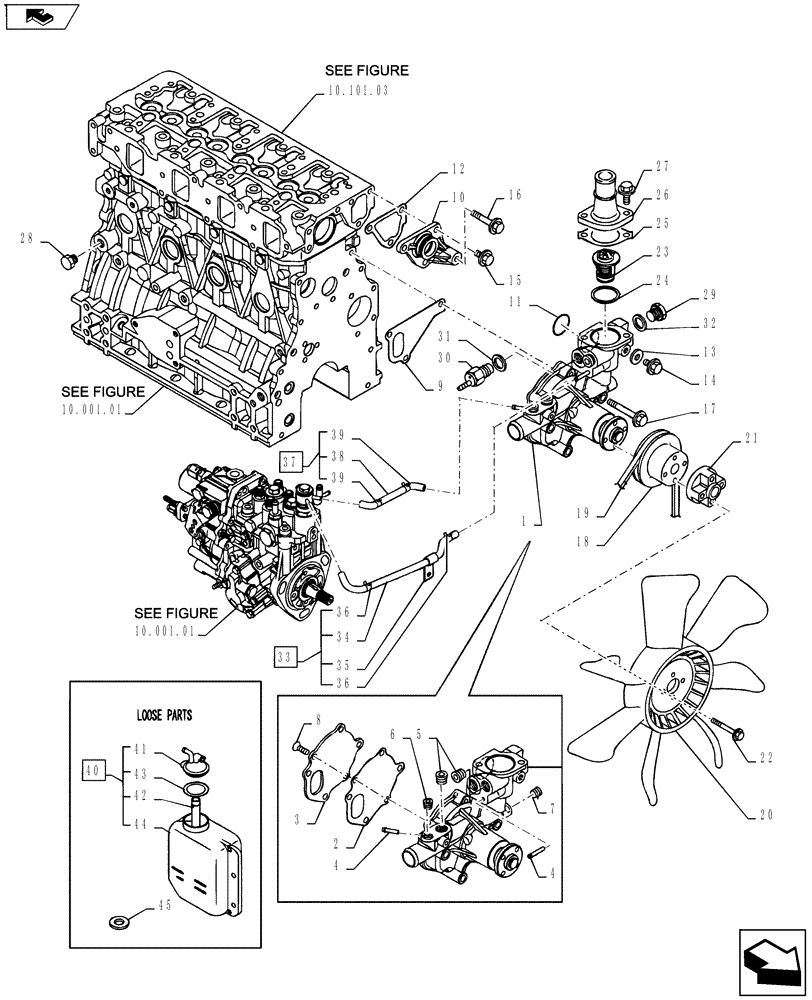

Схема запчастей Case CX27B ASN - (10.400.01) - COOLING WATER SYSTEM (10) - ENGINE
24
45
6
13
39
5
18
12
41
16
17
33
20
15
44
21
25
22
19
10.101.03
10
42
3
23
35
14
9
4
10.001.01
30
40
32
4
37
43
7
26
10.001.01
8
38
home
39
1
31
36
28
2
27
34
29
36
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12924242000

PUMP

Water, Includes Ref. 2-8

1шт.

2

VV12910042051

GASKET

Pump

1шт.

3

VV12910042121

PLATE

1шт.

4

VV11980249113

JOINT

Pipe

2шт.

5

VV12991649740

DRAIN PLUG

R03

2шт.

6

VV23875020000

PLUG

PT 1/4, Steel

1шт.

7

VV23876010000

PLUG

PT 1/8, Screw

1шт.

8

VV26577060142

SCREW,M6 x 14mm

M 6X 14

3шт.

9

VV12948642021

GASKET

Water Pump

1шт.

10

VV12900442040

JOINT

Pump

1шт.

11

VV12948642140

O-RING

G30

1шт.

12

VV12439549840

GASKET

Case

1шт.

13

VV23414080000

SEAL

8, Round

1шт.

14

VV26106080122

BOLT,M8 x 12mm

M 8x12 Plated

1шт.

15

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

3шт.

16

VV26106080452

BOLT,M8 x 45mm

M 8x45 Plated

1шт.

17

VV26106080602

BOLT,M8 x 60mm

M 8x60 Plated

3шт.

18

VV12915542350

PULLEY

Pump

1шт.

19

VV12961242350

V-BELT

1шт.

20

VV12126744741

FAN

Cooling

1шт.

21

VV12903044760

SPACER

Fan

1шт.

22

VV26106060502

BOLT (STEP),M6 x 50mm

M 6x50 Plated

4шт.

23

VV12915549801

THERMOSTAT

1шт.

24

VV12915049811

GASKET

Thermostat

1шт.

25

VV12979549551

GASKET

Cover

1шт.

26

VV12935049560

COVER

Thermostat

1шт.

27

VV26106080222

BOLT,M8 x 22mm

M 8x22 Plated

2шт.

28

VV17105649120

PLUG

Drain

1шт.

29

VV12145042450

PLUG,M16

M16

1шт.

30

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Thermo.

1шт.

31

VV12446544950

GASKET

16

1шт.

32

VV12446544950

GASKET

16

1шт.

33

VV12900449610

PIPE ASSY.

Water Mp2 A, Includes Ref. 34-36

1шт.

34

VV12900449711

PIPE ASSY.

Water Mp2 A

1шт.

35

VV11980249730

CLAMP

Pipe

1шт.

36

VV12472259050

CLAMP

Hose

2шт.

37

VV12900449620

PIPE ASSY.

Water Mp2 B, Includes Ref. 38-39

1шт.

38

VV12900449721

PIPE

Water Mp2 B

1шт.

39

VV12472259050

CLAMP

Hose

2шт.

40

VV12146844520

TANK

Sub., Includes Ref. 41-44

1шт.

41

VV12145044531

CAP

1шт.

42

VV12445044560

CLAMP

1шт.

43

VV12147044581

GASKET

1шт.

44

VV23065070130

PIPE

7x130

1шт.

45

VV12915049360

PACKING

10

1шт.
