(10.304.01) - LUBRICATION OIL SYSTEM

Запчасти Case CX27B ASN (10.304.01) - LUBRICATION OIL SYSTEM (10) - ENGINE

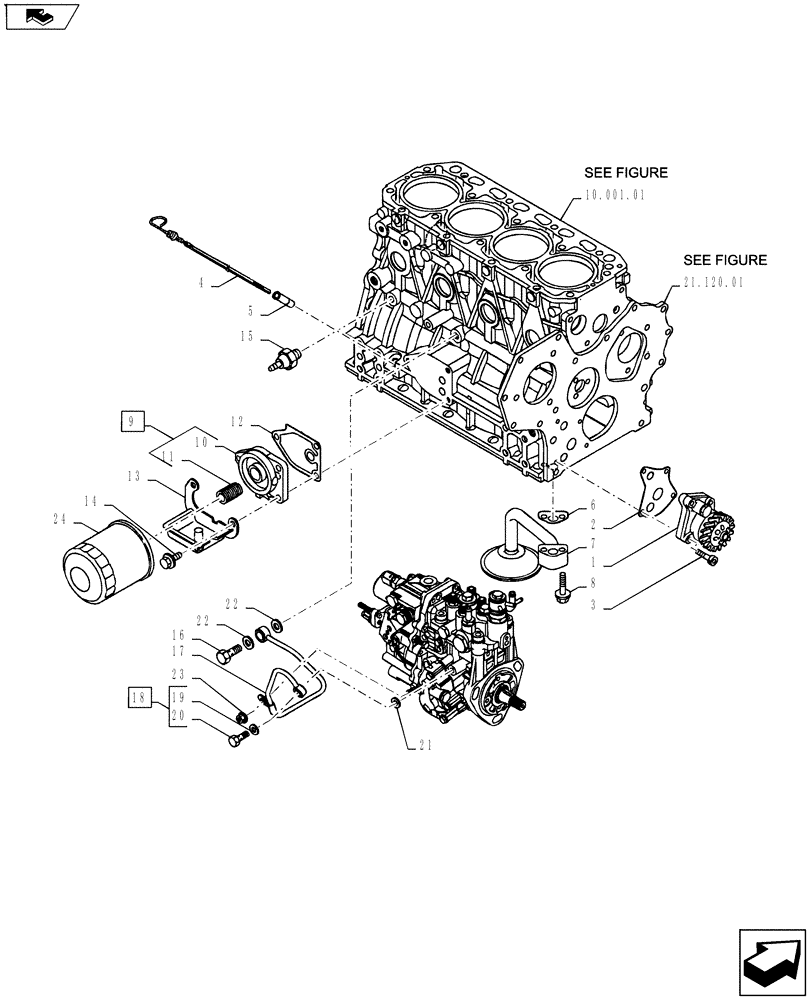

Схема запчастей Case CX27B ASN - (10.304.01) - LUBRICATION OIL SYSTEM (10) - ENGINE
2
10
24
22
13
19
4
home
21.120.01
1
6
17
15
9
22
11
18
16
8
7
23
5
3
14
12
21
20
10.001.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12940732000

LUBE PUMP

Oil

1шт.

2

VV12915032020

GASKET

Pump

1шт.

3

VV26450060252

BOLT,M6 x 25mm

M6x25

4шт.

4

VV12900434802

DIPSTICK

Lub. Oil

1шт.

5

VV12152034810

GUIDE

Dipstick

1шт.

6

VV12915035042

GASKET

Pipe

1шт.

7

VV12943635091

PIPE ASSY.

Oil Inlet

1шт.

8

VV26106080352

BOLT,M8 x 35mm

M 8X35 Plated

2шт.

9

VV11980235100

BRACKET

Filter, Includes Ref. 10-11

1шт.

10

VV11980235110

BRACKET

Filter

1шт.

11

VV12910035140

STUD

1шт.

12

VV12915035111

GASKET

Bracket

1шт.

13

VV12924035800

PLATE

Oil

1шт.

14

VV26106080202

BOLT,M8 x 20mm

M 8X20 Plated

3шт.

15

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Oil

1шт.

16

VV12416039140

BOLT

Joint M10

1шт.

17

VV11980239450

PIPE ASSY.

Lub.Oil

1шт.

18

VV12900559830

BOLT

Joint, Includes Ref. 19-20

1шт.

19

VV22190080002

SEAL

8S

1шт.

20

VV23857030000

BOLT

3

1шт.

21

VV22190080002

SEAL

8S

1шт.

22

VV22190100002

SEAL

10

2шт.

23

VV26366060002

NUT,M6

M6

1шт.

24

VV11900535151

ENGINE OIL FILTER

Lub. Oil

1шт.

Repair Part

1шт.
