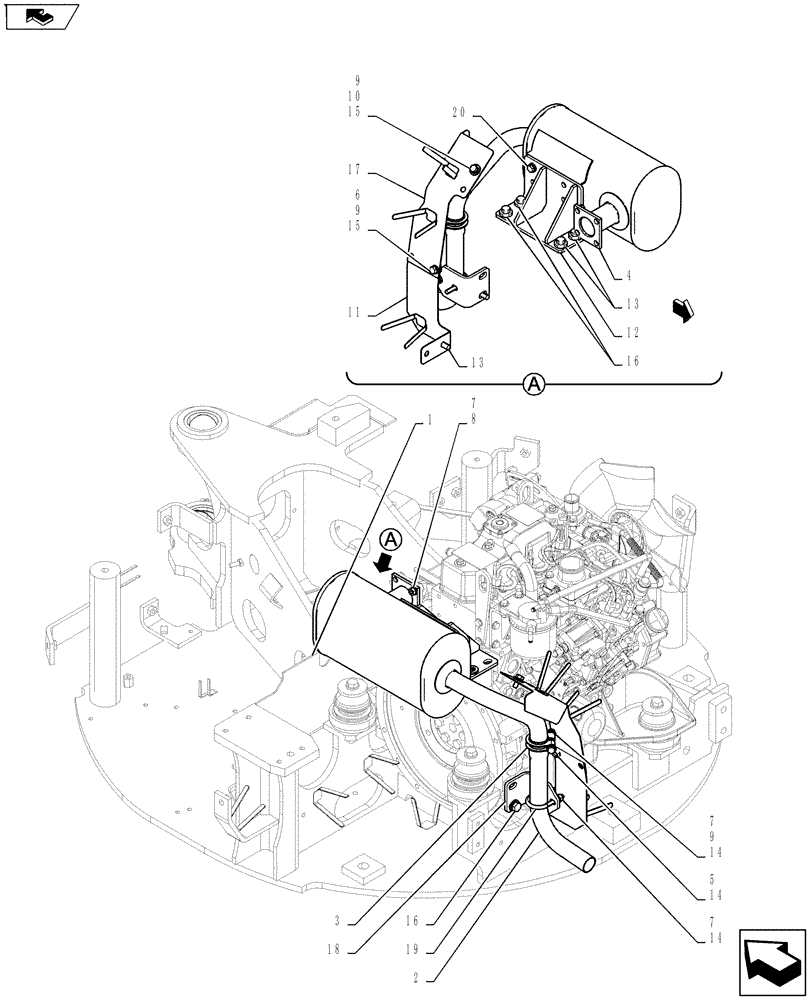

Запчасти Case CX27B ASN (10.254.01) - MUFFLER ASSY (10) - ENGINE

Muffler Assembly PV12P00003F1

1шт.

1

PM12P00018P1

MUFFLER

1шт.

2

PV12P01013P1

EXHAUST SYSTEM PIPE

1шт.

3

PW12P01031P1

CLAMP

1шт.

4

PW12P01043P1

GASKET

1шт.

5

ZS18C08060

SCREW,Hex, M8 x 60mm

Cap

1шт.

6

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

2шт.

7

ZN18C08007

NUT

9шт.

8

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

9

ZW26X08000

LOCK WASHER

Lock

5шт.

10

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap

2шт.

11

PM12P01054P1

COVER

1шт.

12

PM12P01036P1

BRACKET

1шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

4шт.

14

ZW16H08000

WASHER

4шт.

15

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

4шт.

16

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

17

PM12P01056P1

COVER

1шт.

18

PM12P01053P1

PLATE

1шт.

19

2420T2948D18

U-BOLT

1шт.

20

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.
