(10.240.02) - FUEL INJECTION VALVE

Запчасти Case CX27B ASN (10.240.02) - FUEL INJECTION VALVE (10) - ENGINE

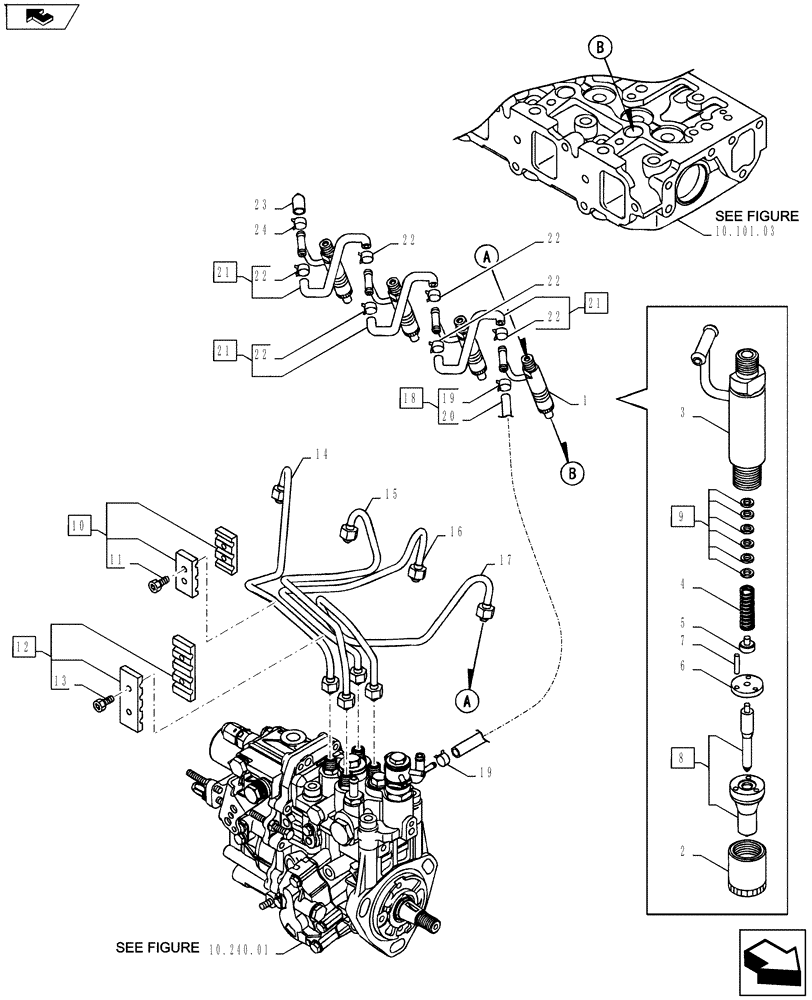

Схема запчастей Case CX27B ASN - (10.240.02) - FUEL INJECTION VALVE (10) - ENGINE
16
9
19
18
home
22
8
21
21
22
13
10.101.03
23
22
14
11
22
5
17
4
1
20
10.240.01
7
22
21
19
10
12
2
3
22
15
6
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV72960453300

FUEL SYSTEM INJECTOR

Includes Ref. 2-9

4шт.

2

VV11425053080

NUT

Case

4шт.

3

VV11980253100

HOLDER

Nozzle

4шт.

4

VV11425053120

SPRING

Nozzle

4шт.

5

VV11425053130

SEAT

Spring

4шт.

6

VV11425053140

PLATE

Stop

4шт.

7

VV11425053210

PIN

8шт.

8

VV12960453300

NOZZLE

4шт.

9

VV11980353400

SHIM KIT

4шт.

10

VV12915059120

RETAINER

Pipe, Includes Ref. 11

1шт.

11

VV12915059131

BOLT

M 4x14, Hex.Sckt.

2шт.

12

VV12955059120

RETAINER

Pipe, Includes Ref. 13

1шт.

13

VV12915059131

BOLT

M 4x14, Hex.Sckt.

2шт.

14

VV12960159810

PIPE ASSY.

Injection

1шт.

15

VV12960159820

PIPE ASSY.

Injection

1шт.

16

VV12960159830

PIPE ASSY.

Injection

1шт.

17

VV12960159840

PIPE ASSY.

Injection

1шт.

18

VV11980259550

PIPE ASSY.

Return, Includes Ref. 19-20

1шт.

19

VV12472259050

CLAMP

Hose

2шт.

20

VV11980259560

PIPE

Fuel Return

1шт.

21

VV12948659551

PIPE

Return, Includes Ref. 22

3шт.

22

VV12472259050

CLAMP

Hose

6шт.

23

VV11959359581

CAP

1шт.

24

VV12406077680

CLAMP

10

1шт.
