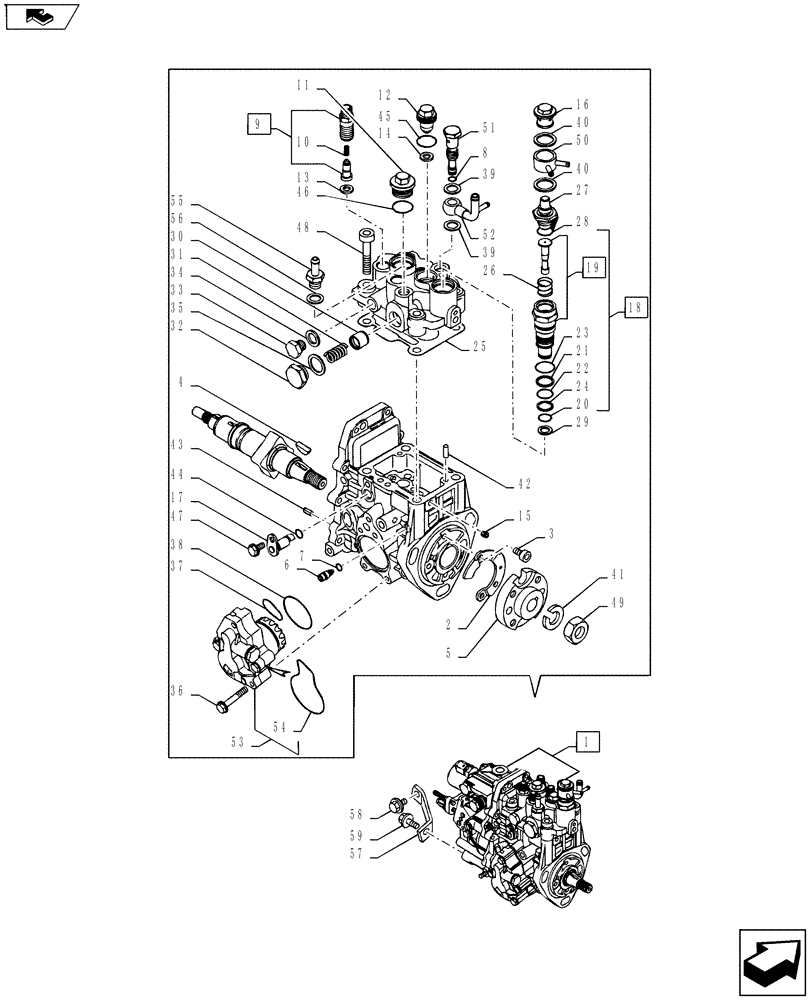

Запчасти Case CX27B ASN (10.240.01) - FUEL INJECTION PUMP (10) - ENGINE

1

VV72963051440

FUEL INJECTION PUMP

Includes Ref. 2-56

1шт.

Governor (See Figure 10.230.01) Is Incorporated In This Fuel Injection Pump

1шт.

2

VV12900851900

COVER

1шт.

3

VV12900851920

BOLT,M6 x 10mm

M6X10

2шт.

4

VV11980251090

WOODRUFF KEY,M4 x 16mm

4x16

1шт.

5

VV15855251151

FLANGE

1шт.

6

VV15860051270

STOP

Tappet

1шт.

7

VV15856351281

O-RING

1шт.

8

VV15856351281

O-RING

1шт.

9

VV12900851390

PACKAGE

Delivery, Includes Ref. 10

4шт.

10

VV15856351330

SPRING

Delivery

4шт.

11

VV15860151550

PLUG

1шт.

12

VV11980251560

PLUG

Barrel

1шт.

13

VV15855251571

PLUG

4шт.

14

VV15855251571

PLUG

1шт.

15

VV15855751570

PLUG

1шт.

16

VV15860151570

PLUG

Water Pump

1шт.

17

VV15855251580

LEVER & PIN ASSY

1шт.

18

VV11980251590

TIMER

Includes Ref. 19-24

1шт.

19

VV11980251600

TIMER

1шт.

20

VV15855351670

O-RING

1011

1шт.

21

VV11980251680

BACK-UP RING

1шт.

22

VV11980251690

O-RING

1шт.

23

VV24356190200

O-RING

19020

1шт.

24

VV24372000150

BACK-UP RING

Backup T2 P 15

1шт.

25

VV15855251600

SEAL

Head

1шт.

26

VV15855351630

SPRING

Timer

1шт.

27

VV15855351650

ELEMENT

Thermo

1шт.

28

VV15855351660

O-RING

P14

1шт.

29

VV15855351680

SEAL

Timer

1шт.

30

VV15860151770

PISTON

1шт.

31

VV15855251781

SPRING

Actuator

1шт.

32

VV15860151790

PLUG

1шт.

33

VV15855351930

PLUG,M12

M12

1шт.

34

VV22190120002

SEAL

12

1шт.

35

VV22190180002

SEAL

18

1шт.

36

VV15855351770

SCREW

4шт.

37

VV15855252311

O-RING

1шт.

38

VV15855252400

O-RING

4E S42

1шт.

39

VV22190120002

SEAL

12

2шт.

40

VV22190180002

SEAL

18

2шт.

41

VV22217140000

SPRING WASHER

14

1шт.

42

VV22312050140

PARALLEL PIN,M5 x 14mm

5x14

2шт.

43

VV22351050010

SPRING,5 x 10mm

5x10

2шт.

44

VV24311000070

O-RING

1A P-7.0

1шт.

45

VV24356190180

O-RING

4D 19018

1шт.

46

VV24356190200

O-RING

19020

1шт.

47

VV26106060102

BOLT,M6 x 10mm

6X10 Plated

1шт.

48

VV26450080452

SCREW,M8 x 45mm

M 8X 45

4шт.

49

VV26776140002

LOCK NUT,M14

M14 Plated

1шт.

50

VV15855351551

BANJO FITTING

Cooling Water

1шт.

51

VV15860151650

BANJO FITTING

Over Flow

1шт.

52

VV15855251670

BANJO FITTING

Over Flow

1шт.

53

VV15855252100

FUEL PUMP

Feed, Includes Ref. 54

1шт.

54

VV15855252500

O-RING

Pump

1шт.

55

VV11993459910

HYD CONNECTOR

Pipe

1шт.

56

VV22190120002

SEAL

12

1шт.

57

VV12960151250

SUPPORT

Pump

1шт.

58

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

1шт.

59

VV26106080202

BOLT,M8 x 20mm

M 8x20 Plated

1шт.
