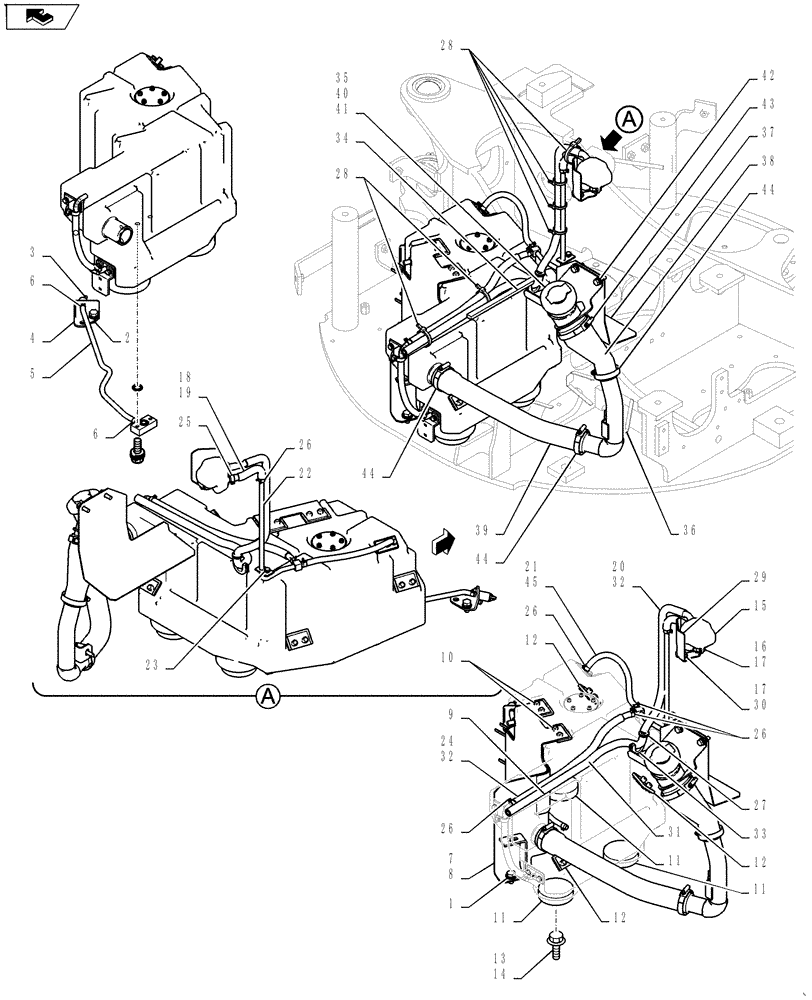

Запчасти Case CX27B ASN (10.216.02) - FUEL TANK INSTALL (CAB) (10) - ENGINE

Fuel Tank Install (Cab) PM20P00018F1

1шт.

1

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

2

ZM22C10020

BOLT

Sems

1шт.

3

YN05P00010S007

COCK, DRAIN

1шт.

4

PM05P01046P1

BOSS

1шт.

5

PA21P01005DW

HOSE,7mm ID x 500mm L

1шт.

6

PH05P01088D6

CLIP

2шт.

7

PW20P01222F1

BRACKET

Assy.

1шт.

8

PW20P01312P1

BRACKET

1шт.

9

PW20P01227P1

RUBBER

1шт.

10

PW20P01207P1

RUBBER

2шт.

11

PW20P01115P1

RUBBER

3шт.

12

PW20P01207P1

RUBBER

3шт.

13

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

3шт.

14

ZW16K10000

WASHER

3шт.

15

PW20P00039P1

TANK

Fuel

1шт.

16

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

1шт.

17

ZW16P08000

WASHER

1шт.

18

PW21P01003D4

TUBE

1шт.

19

PW20P01348P2

HOSE

1шт.

20

PM20P01127P2

HOSE

1шт.

21

PW20P01285D7

HOSE

1шт.

22

PW20P01353P1

TUBE

1шт.

23

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

24

PW20P01285D6

HOSE

1шт.

25

PH05P01088D7

CLIP,13.6mm - 17.5mm

1шт.

26

PH05P01088D4

CLIP

5шт.

27

2420R372D13

GROMMET

1шт.

28

PY01P01043D3

CABLE TIE,188mm L

5шт.

29

PW20P01318P1

BRACKET

1шт.

30

ZS18C08014

SCREW,Hex, M8 x 14mm

Cap

1шт.

31

PU13E01002DC

TUBE

1шт.

32

PU13E01002D7

TUBE

2шт.

33

2420Z1342

GROMMET

1шт.

34

YT21C01297D9

WEATHERSTRIP

1шт.

35

PM20P01136P2

NECK FILLER

1шт.

36

PM20P01147P1

PIPE

1шт.

37

PM20P01138P1

PLATE

1шт.

38

PM20P01139P1

HOSE

1шт.

39

PM20P01141P1

HOSE

1шт.

40

PW20P01282P1

CAP

1шт.

41

PW50V00009P1

STRAINER ASSY.

1шт.

42

ZM22C08025

BOLT

Sems

3шт.

43

ZC16X06700

CLIP,58mm - 76mm

1шт.

44

ZC16X05000

CLIP

3шт.

45

PW21P01003DU

PIPE

1шт.
