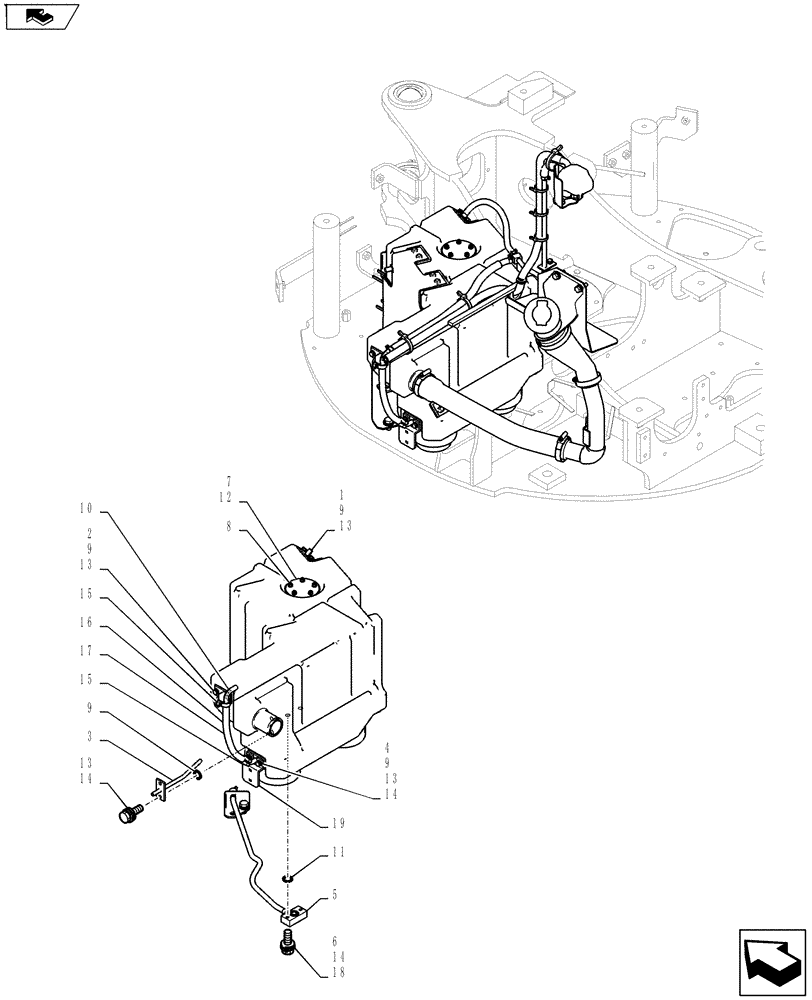

Запчасти Case CX27B ASN (10.216.01) - FUEL TANK (CANOPY) (10) - ENGINE

.

Fuel Tank (Canopy) PM20P00009F1

1шт.

.

PM20P00008P2

TANK

Assembly, Serial Range: PV13-33453-PV13-33515

1шт.

.

PM20P00008P3

TANK

Assembly, Start Serial: PV13-33516

1шт.

1

PW20P01325P1

FLANGE

1шт.

2

PW20P01288P1

FLANGE

1шт.

3

PW20P01272P1

FLANGE

1шт.

4

PW20P01364P1

FLANGE

1шт.

5

PW20P01302P1

FLANGE

1шт.

6

ZS18C06030

SCREW,Hex, M6 x 30mm

Cap

2шт.

7

PW20P01208P1

PACKING

1шт.

8

ZM61C05012

BOLT

Sems

5шт.

9

2445Z1453D2

O-RING

4шт.

10

PM20P01146P1

BRACKET

1шт.

11

2445Z1453D9

O-RING

1шт.

12

PX52S00006F1

SENSOR

Level

1шт.

13

ZM61C06016

BOLT

Sems

8шт.

14

ZW26X06000

LOCK WASHER

2шт.

15

LE20P01012P1

CLAMP

2шт.

16

PW20P01366P1

HOSE

1шт.

17

LE20P01014P1

BALL

1шт.

18

ZW16H06000

WASHER

2шт.

19

PW20P01355P2

PLATE

1шт.
