(10.214.02) - FUEL LINES

Запчасти Case CX27B ASN (10.214.02) - FUEL LINES (10) - ENGINE

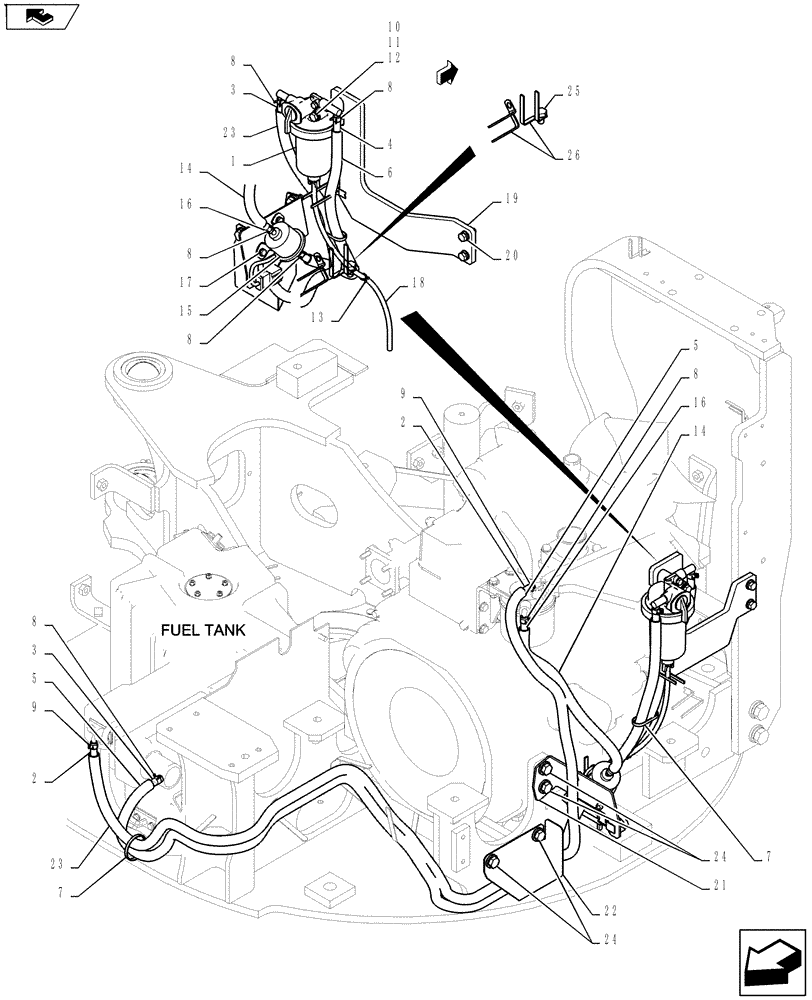

Схема запчастей Case CX27B ASN - (10.214.02) - FUEL LINES (10) - ENGINE
8
8
5
11
7
14
23
20
1
8
3
26
16
12
3
18
8
16
14
6
13
22
9
2
5
21
2
9
24
19
17
8
8
10
7
4
home
24
15
25
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Fuel Lines PM21P00006F1

1шт.

1

PH02P01056P1

SEPARATOR

Assy., Water

1шт.

2

PA21P01005DN

HOSE

1шт.

3

PH21P01003DG

HOSE

1шт.

4

PH21P01003D3

HOSE ASSY.

1шт.

5

PW21P01003DN

TUBE

1шт.

6

PU13E01002DA

TUBE

1шт.

7

PY01P01043D3

CABLE TIE,188mm L

2шт.

8

PH05P01088D5

CLIP

6шт.

9

PH05P01088D6

CLIP

2шт.

10

ZS18C08070

SCREW,Hex, M8 x 70mm

1шт.

11

ZW16P08000

WASHER

1шт.

12

ZW26X08000

LOCK WASHER

Lock

1шт.

13

PA21P01003D2

CLIP

1шт.

14

PW21P01003DT

TUBE

1шт.

15

PW22P00001P1

FUEL PUMP

1шт.

16

PH21P01003DM

HOSE

1шт.

17

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

18

HX11Y04053DX

FLEXIBLE HOSE,6mm ID x 530mm L

1шт.

19

PM21P01011P1

BRACKET

1шт.

20

ZM22C08025

BOLT

Sems

2шт.

21

PM21P01013P1

BRACKET

1шт.

22

PW21P01009P1

COVER

1шт.

23

PW21P01003DM

RIGID TUBE

1шт.

24

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

4шт.

25

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

1шт.

26

2432R233D3

CLIP

2шт.
