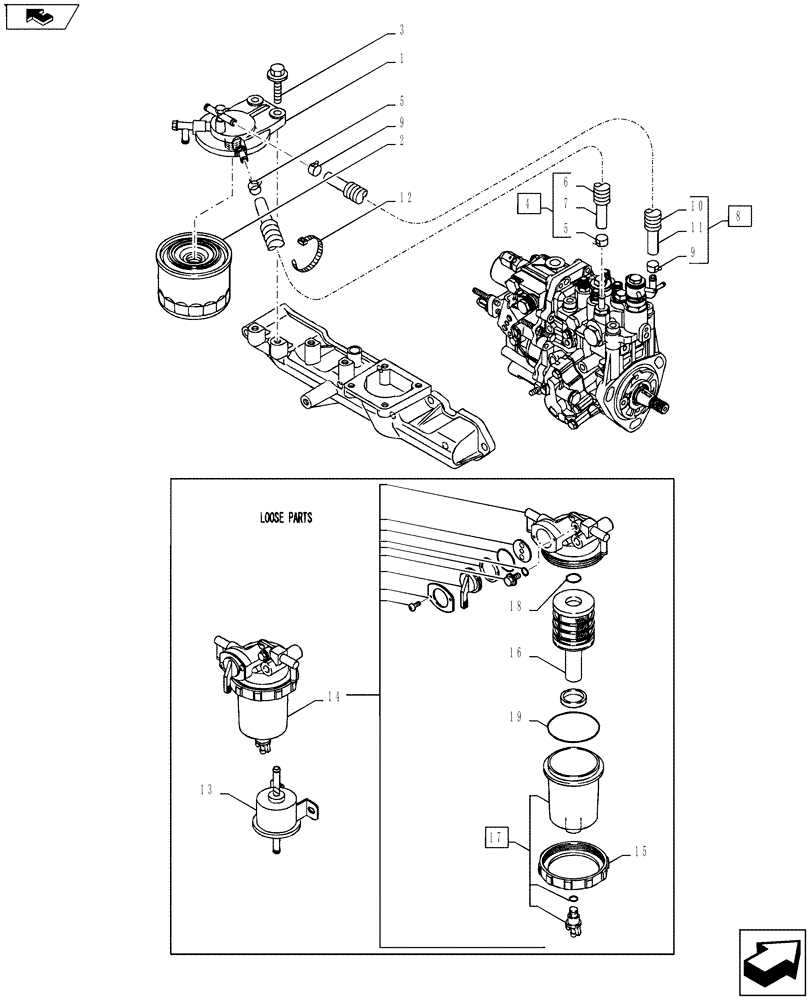

Запчасти Case CX27B ASN (10.214.01) - FUEL LINE (10) - ENGINE

1

VV12900455612

BRACKET

Filter

1шт.

2

VV12900455801

FUEL FILTER

Oil

1шт.

3

VV26106080302

BOLT,M8 x 30mm

M 8X30 Plated

2шт.

4

VV12963059010

CLAMP

Fuel Oil, Includes Ref. 5-7

1шт.

5

VV12476659050

CLAMP

12

2шт.

6

VV12996159110

TUBE

Corrugated

1шт.

7

VV10502559560

PIPE

Fuel Oil

1шт.

8

VV12995659010

CLAMP

Fuel Oil, Includes Ref. 9-11

1шт.

9

VV12476659050

CLAMP

12

2шт.

10

VV12995759101

TUBE

Corrugated

1шт.

11

VV10522559511

PIPE

Fuel Oil

1шт.

12

VV12175059890

CLAMP

140

1шт.

13

VV12961252100

FUEL PUMP,12V, 1.5A

Feed

1шт.

14

VV12990655700

SEPARATOR

Includes Ref. 15-19

1шт.

15

VV12910055690

RING

Retaining

1шт.

16

VV11980255710

FILTER STRAINER

1шт.

17

VV11980255730

CAP

1шт.

18

VV24311000160

O-RING

1A P-16.0

1шт.

19

VV24321000650

O-RING

1A G-65.0

1шт.
