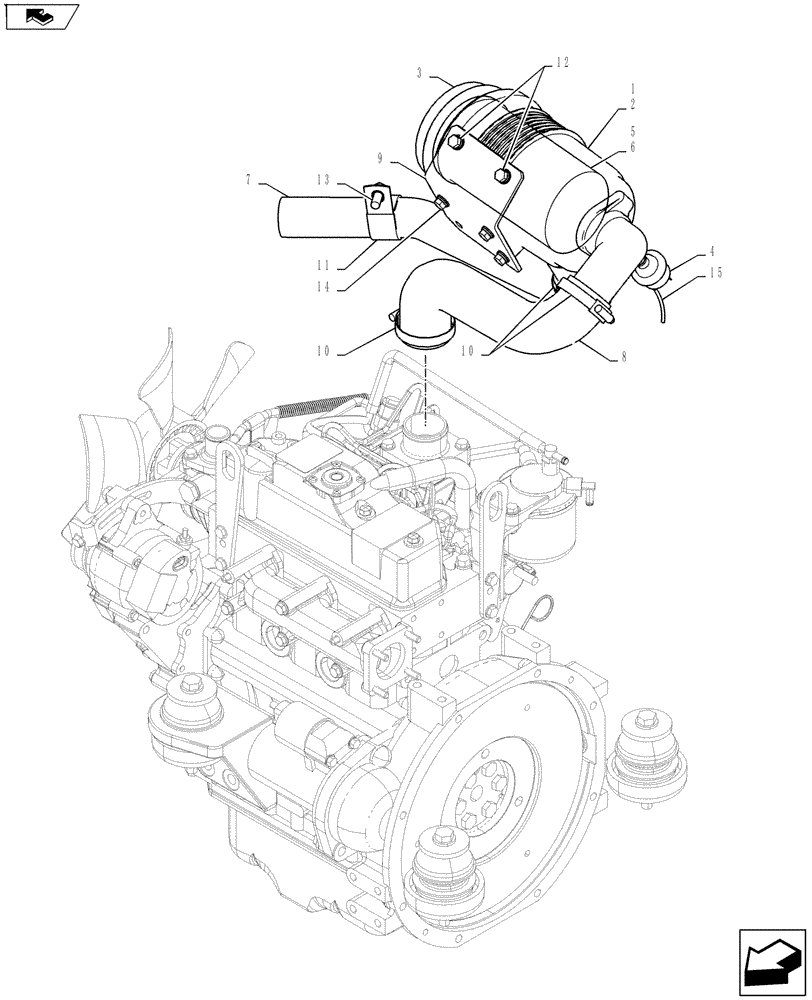

Запчасти Case CX27B ASN (10.202.01) - AIR CLEANER ASSY (10) - ENGINE

.

Air Cleaner Assembly PM11P00014F1

1шт.

1

PM11P00012F1

AIR CLEANER

Assembly, Incl 2 - 6

1шт.

2

PM11P00012S001

BODY

1шт.

3

PM11P00009S002

COVER ASSY

1шт.

4

PW11P00010S004

INDICATOR

1шт.

5

PM11P00012S005

AIR FILTER

Filter, Serial Range: PV13-33453-PV13-33465

1шт.

6

PM11P00012S006

AIR FILTER

Filter, Start Serial: PV13-33466

1шт.

7

PM11P01051P1

HOSE

Air

1шт.

8

PM11P01045P1

HOSE

Air

1шт.

9

PM11P01052P1

BRACKET

1шт.

10

ZC16X05800

CLIP

3шт.

11

ZC46X46014

CLIP

1шт.

12

PA03M01093D2

BOLT

Sems

2шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

14

ZM22C08016

BOLT

Sems

4шт.

15

HX11Y03010DY

HOSE

1шт.
