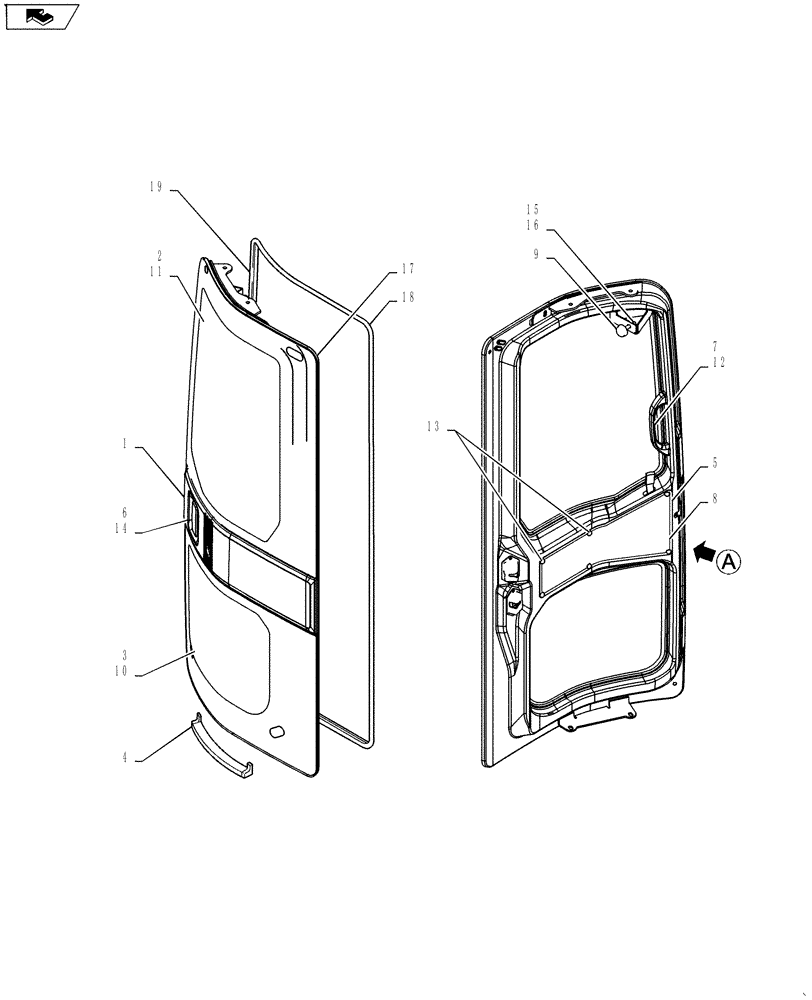

Запчасти Case CX27B ASN (90.154.02) - DOOR ASSY, CAB (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

Door Assembly, Cab (With Head Guard) PM02C00042F1

1шт.

1

PM51C01071P1

DOOR

1шт.

2

PM02C01074P1

GLASS

1шт.

3

PM02C01075P1

GLASS

1шт.

4

PM02C01489P1

SEAL

1шт.

5

PM51C01076D1

SEAL

1шт.

6

YR02C01465P1

HANDLE

1шт.

7

PM02C01479P1

HANDLE

1шт.

8

PM51C01050P1

COVER

1шт.

9

YT02C01066P1

STOP

1шт.

10

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

1шт.

11

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

12

ZM66C06016

BOLT

Sems

6шт.

13

ZM46C06012

SCREW

Sems

6шт.

14

PM51C01081P1

NUT

2шт.

15

ZN17F10008

NUT

1шт.

16

ZW16X10000

WASHER

1шт.

17

YR03M01319D1

SEAL

4шт.

18

PM02C01354D2

SOFT TRIM

1шт.

19

PM02C01354D3

DOOR SEAL

1шт.
