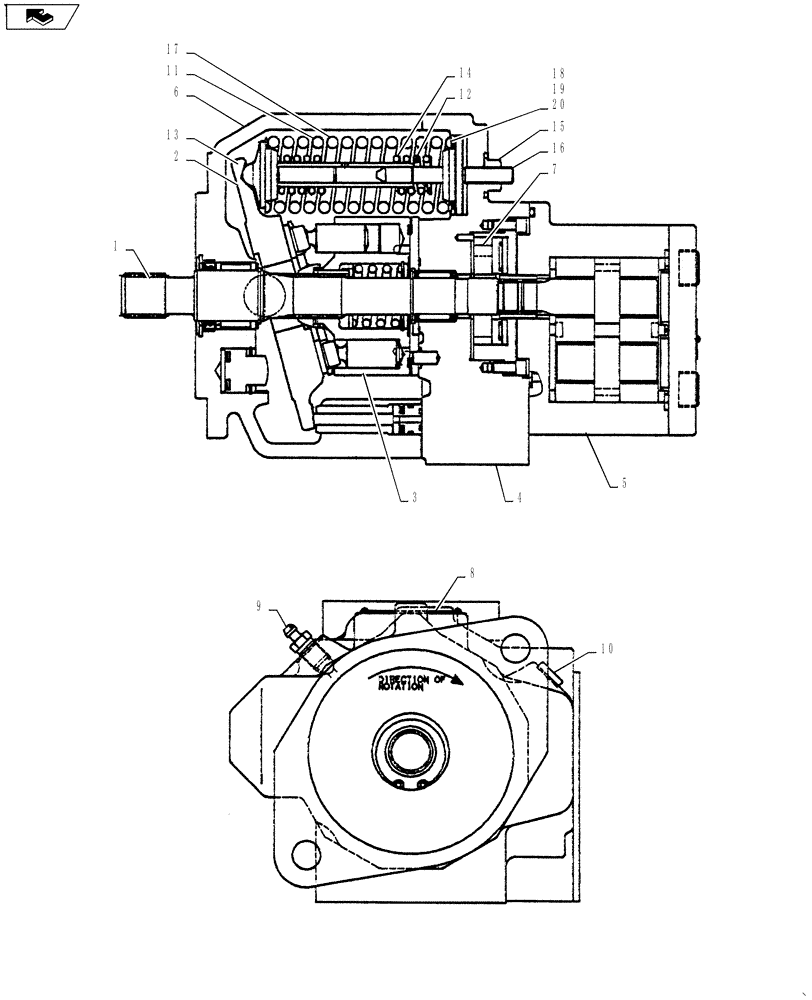

Запчасти Case CX27B ASN (10.114.02) - POWER TAKE-OFF ASSY (10) - ENGINE

Power Take-Off Assembly PM30P00006F1

1шт.

1

PM10V01001F1

SHAFT ASSY.

1шт.

2

PM10V01007F1

PLATE ASSY.

1шт.

3

PM10V01003F1

ROTOR ASSY.

1шт.

4

PM10V01008F1

COVER ASSY

1шт.

5

PM10V00020F1

GEARBOX ASSY

Pump

1шт.

6

PM10V01010F1

HOUSING ASSY.

1шт.

7

PX10V00015F1

PUMP

Hyd.

1шт.

8

EN10V00005S030

IDENTITY PLATE

1шт.

9

PY10V00007S017

BREATHER

1шт.

10

2441U720S49

PLUG

1шт.

11

PM10V00017S020

SPRING

1шт.

12

PM10V00017S021

SPRING

1шт.

13

PM10V01005S001

SPRING SEAT

1шт.

14

PM10V01005S002

SPRING SEAT

1шт.

15

PM10V01005S003

NUT

1шт.

16

ZS83C08025

SCREW

1шт.

17

PM10V01005S007

GUIDE

1шт.

18

PW10V00001S048

SHIM,1.0mm Thk

2шт.

19

PW10V00001S047

SHIM,0.5mm Thk

2шт.

20

PM10V01005S054

SHIM,0.3mm Thk

2шт.
