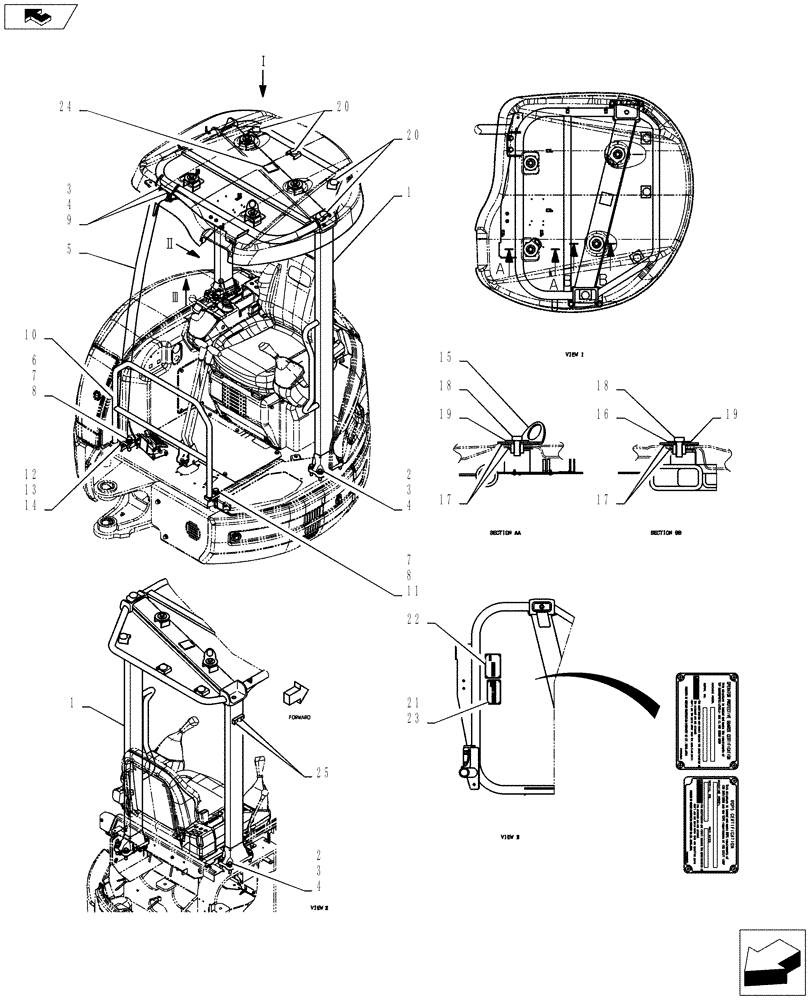

Запчасти Case CX27B ASN (90.150.18) - CANOPY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Canopy Assembly PW06C00041F1

1шт.

1

PW06C01243P1

SUPPORT

1шт.

2

ZS18C12055

SCREW,Hex, M12 x 55mm

Cap

8шт.

3

ZW26X12000

LOCK WASHER

10шт.

4

ZW16H12000

WASHER

10шт.

5

PV06C01056P1

SUPPORT

1шт.

6

ZS18C16065

SCREW,Hex, M16 x 65mm

Cap

1шт.

7

ZW26X16000

LOCK WASHER

2шт.

8

ZW16H16000

WASHER

2шт.

9

ZS18C12035

SCREW,Hex, M12 x 35mm

Cap

2шт.

10

PW41C00017P1

HANDRAIL

1шт.

11

ZS18C16100

SCREW,Hex, M16 x 100mm

Cap

1шт.

12

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

1шт.

13

ZW26X10000

LOCK WASHER

1шт.

14

ZW16H10000

WASHER

1шт.

15

PW06C01088P1

PLATE

2шт.

16

PM06C01042P1

WASHER

2шт.

17

PM06C01096P1

RUBBER

8шт.

18

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

4шт.

19

2418T22593

WASHER

4шт.

20

2420Z1340D1

PLUG

4шт.

21

PV20T01080P1

PLATE

Number

1шт.

22

PV20T01081P1

Number

1шт.

23

PB06C01093D1

RIVET

8шт.

24

PM03M01339P1

RUBBER

1шт.

25

YT02C01567D1

PLATE

2шт.
