(90.150.14) - CAB INSTALL (WITH HEAD GUARD)

Запчасти Case CX27B ASN (90.150.14) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

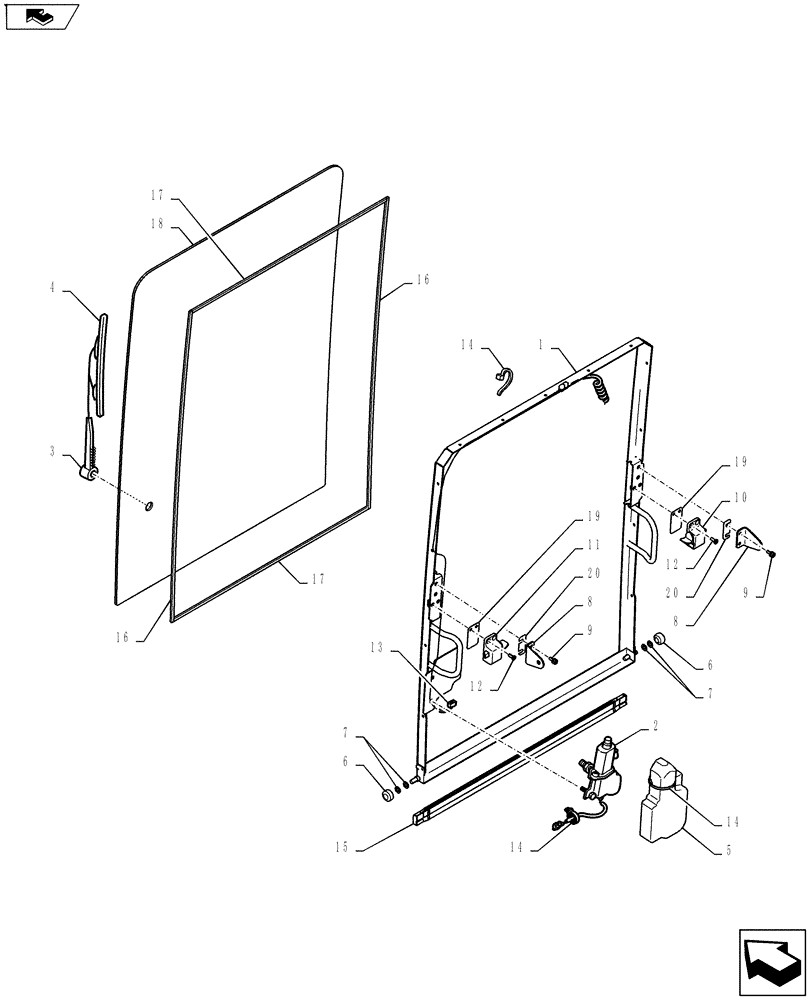

Схема запчастей Case CX27B ASN - (90.150.14) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
6
18
3
6
20
16
11
9
14
19
2
15
16
7
17
20
8
12
12
4
7
5
10
19
9
17
13
14
1
8
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cab Install (With Head Guard) PM02C00042F1

1шт.

1

PW50C01082P1

WINDOW FRAME

1шт.

2

PM76S00001F1

WIPER MOTOR

MOTOR, WIPER

1шт.

3

PM53C00001P1

WIPER ARM

1шт.

4

YR53C01001P1

WIPER BLADE

1шт.

5

YT02C01125P1

COVER

1шт.

6

YT50C01024P1

ROLLER

2шт.

7

PM50C01052P1

SHIM,1.0mm Thk

4шт.

8

PW50C01008P1

BRACKET

2шт.

9

ZM66C06016

BOLT

Sems

4шт.

10

PW50C01046P1

LOCK

1шт.

11

PW50C01047P1

LOCK

1шт.

12

ZS68C06016

SCREW

Cap

4шт.

13

YT02C01106P1

HARNESS

1шт.

14

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

10шт.

15

PW50C01026P1

RUBBER SEAL

1шт.

16

PW50C01027P1

SEAL, GLASS

2шт.

17

PW50C01028P1

SEAL, GLASS

2шт.

18

PW50C01021P1

GLASS

1шт.

19

PW50C01079P1

SHIM,1.0mm Thk

(1.0)

2шт.

20

PM02C01504D2

SHIM,1.0mm Thk

2шт.
