(10.114.01) - POWER TAKE-OFF ASSY

Запчасти Case CX27B ASN (10.114.01) - POWER TAKE-OFF ASSY (10) - ENGINE

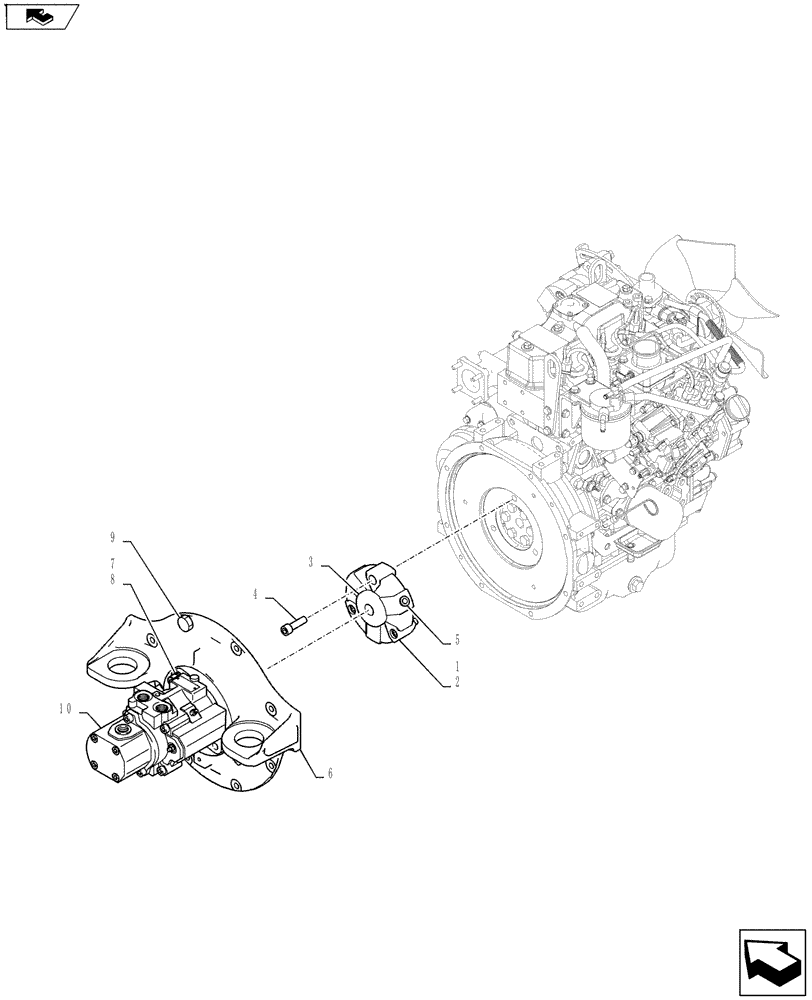

Схема запчастей Case CX27B ASN - (10.114.01) - POWER TAKE-OFF ASSY (10) - ENGINE
6
4
10
8
home
5
1
2
3
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Power Take-Off Assembly PM30P00006F1

1шт.

1

PW30P01007F1

COUPLING

Assy.

1шт.

2

PW30P01002S001

COUPLING

1шт.

3

PW30P01002S002

HUB

1шт.

4

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

5

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

6

PW30P01005P2

BRACKET

1шт.

7

PV17M01003D1

SCREW

Cap

2шт.

8

ZW16K12000

WASHER

2шт.

9

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

8шт.

10

PM10V00017F1

HYDRAULIC PUMP

Assy.

1шт.
