(90.150.12) - CAB INSTALL (WITH HEAD GUARD)

Запчасти Case CX27B ASN (90.150.12) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

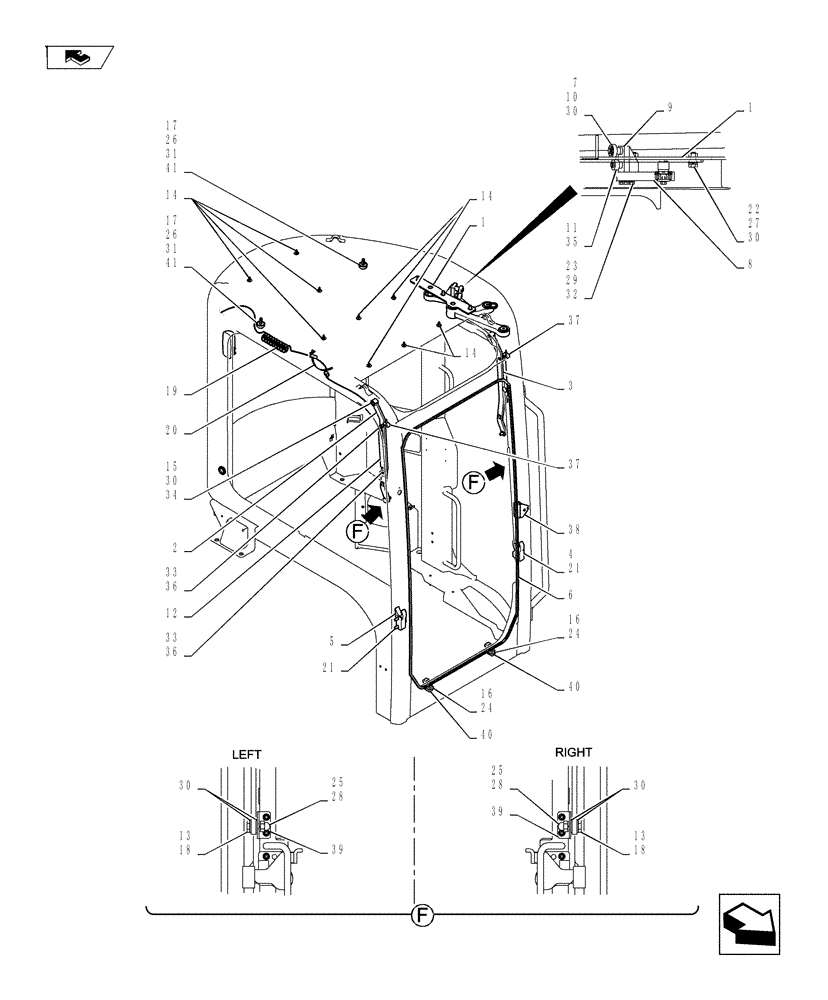

Схема запчастей Case CX27B ASN - (90.150.12) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS
29
25
26
30
26
1
13
9
home
34
17
1
6
28
3
10
30
8
36
30
17
40
30
33
2
14
24
23
31
16
18
14
11
32
19
39
25
28
13
27
41
38
35
24
14
12
20
31
5
15
18
41
40
37
21
36
30
22
7
4
16
21
39
37
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cab Install (With Head Guard) PM02C00042F1

1шт.

1

PW02C01071P1

BRACKET

1шт.

2

PW02C01389P1

LINK

1шт.

3

PW02C01391P1

LINK

1шт.

4

PW02C01116P1

STOP

1шт.

5

PW02C01115P1

STOP

1шт.

6

PW02C01185D1

SEAL,3900mm L

1шт.

7

ZR16X01200

RING

Snap

1шт.

8

PM02C01419P1

LINK

1шт.

9

PM02C01477P1

LINK

1шт.

10

PM02C01434P1

BEARING,12mm ID x 32mm OD x 10mm W

1шт.

11

YT50C01024P1

ROLLER

1шт.

12

PM02C01133P3

GAS STRUT

2шт.

13

PM02C01257P1

SPECIAL PIN

2шт.

14

YT02C01324P1

CLIP

9шт.

15

2405U104D012020

BUSHING

2шт.

16

PM02C01356P2

STOP

2шт.

17

YT02C01066P1

STOP

4шт.

18

2405U104D012008

BUSHING

2шт.

19

YT02C01104P3

HARNESS

1шт.

20

YN03E01001D5

CLIP

1шт.

21

ZM46C05025

BOLT

Sems

4шт.

22

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

3шт.

23

ZS18C08035

SCREW,Hex, M8 x 35mm

Cap

3шт.

24

ZS31C05025

SCREW,Phillips Drive, Pan HD, M5 x 25mm

Machine

2шт.

25

ZN46C10018

NUT

2шт.

26

ZN18F10008

NUT

4шт.

27

ZW26X12000

LOCK WASHER

3шт.

28

ZW26X10000

LOCK WASHER

2шт.

29

ZW26X08000

LOCK WASHER

Lock

14шт.

30

ZW16P12000

WASHER

12шт.

31

ZW16K10000

WASHER

4шт.

32

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

9шт.

33

ZW16X06000

WASHER

8шт.

34

ZR36X01000

RING

Snap

2шт.

35

ZR36X00700

RING

Snap

1шт.

36

ZR36X00500

SNAP RING

Snap

4шт.

37

PM02C01396P1

STOP

2шт.

38

PM02C01212P1

BLOCK

Tapped

1шт.

39

PM02C01504D1

SHIM,0.5mm Thk

2шт.

40

PM02C01505P1

SHIM,1.0mm Thk

4шт.

41

2418T5373C2

WASHER

2шт.
