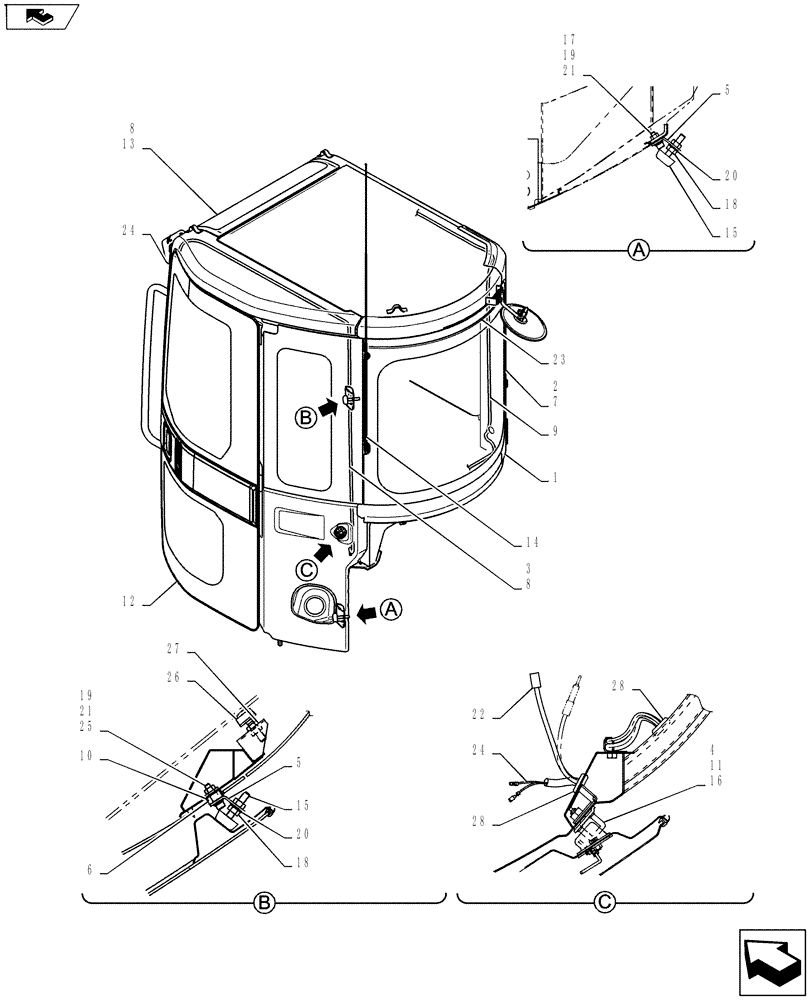

Запчасти Case CX27B ASN (90.150.09) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Cab Install (With Head Guard) PM02C00042F1%K2

1шт.

1

PW02C00086F1

CAB

Cab Assembly, W/O Cooler, W/Headguard

1шт.

1

NSS

NOT SOLD SEPARAT

Cab PW02C00087P1

1шт.

2

PW02C01205P2

GLASS

1шт.

3

PW02C01204P1

GLASS

Window, LH AFT Cab

1шт.

4

YT51C01021P1

HOOK

2шт.

5

PW02C01110P1

BRACKET

2шт.

6

PW02C01220P1

SPACER

2шт.

7

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

8

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

2шт.

9

PW02C01382P1

WIRE HARNESS

1шт.

10

PW02C01359P1

SEAL

Packing

2шт.

11

YT51C01077D1

SPACER

2шт.

12

PM51C00006F1%LD

LH CAB DOOR

Assy. (Amirac 1000 Black Lustrous)

1шт.

13

PW02C01293P1

GLASS

1шт.

14

PM54S00001P1

ANTENNA

1шт.

15

YT02C01066P1

STOP

4шт.

16

ZS68C10025

CAPSCREW

6шт.

17

ZS28C08025

SCREW,Hex Socket Head, M8 x 25mm

2шт.

18

ZN18F10008

NUT

4шт.

19

ZW26X08000

LOCK WASHER

14шт.

20

ZW16X10000

WASHER

2шт.

21

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

9шт.

22

PM02C01499P1

HARNESS

1шт.

23

YT51C01081D2

SEAL

1шт.

24

PW11E01034D1

HARNESS

1шт.

25

ZS28C08035

SCREW,Hex Socket Head, M8 x 35mm

Cap

2шт.

26

YR02C01503P1

STOP

1шт.

27

ZN17C10006

NUT

1шт.

28

PW02C01368P1

GROMMET

3шт.
