Запчасти Case CX27B ASN (90.150.07) - CAB INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

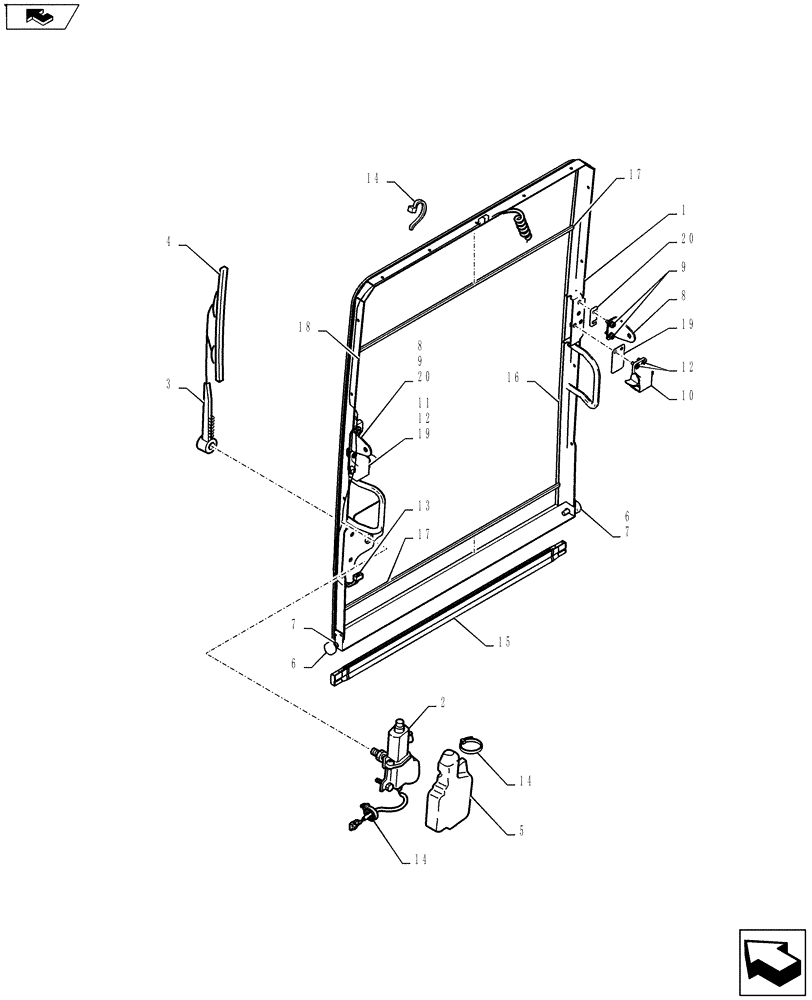

Схема запчастей Case CX27B ASN - (90.150.07) - CAB INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
8
10
15
20
7
4
14
3
1
12
17
20
18
19
16
14
17
8
9
5
19
2
13
9
14
home
6
12
11
7

Артикул

Название

Примечание

Количество

.

Cab Install PM02C00040F1

1шт.

PW50C00007F1

WINDOW FRAME

Assembly, Incl 1 - 20

1шт.

1

PW50C01082P1

WINDOW FRAME

1шт.

2

PM76S00001F1

WIPER MOTOR

MOTOR, WIPER

1шт.

3

PM53C00001P1

WIPER ARM

1шт.

4

YR53C01001P1

WIPER BLADE

1шт.

5

YT02C01125P1

COVER

1шт.

6

YT50C01024P1

ROLLER

2шт.

7

PM50C01052P1

SHIM,1.0mm Thk

4шт.

8

PW50C01008P1

BRACKET

2шт.

9

ZM66C06016

BOLT

Sems

4шт.

10

PW50C01046P1

LOCK

1шт.

11

PW50C01047P1

LOCK

1шт.

12

ZS68C06016

SCREW

Cap

4шт.

13

YT02C01106P1

HARNESS

1шт.

14

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

10шт.

15

PW50C01026P1

RUBBER SEAL

1шт.

16

PW50C01027P1

SEAL, GLASS

2шт.

17

PW50C01028P1

SEAL, GLASS

2шт.

18

PW50C01021P1

GLASS

1шт.

19

PW50C01079P1

SHIM,1.0mm Thk

(1.0)

2шт.

20

PM02C01504D2

SHIM,1.0mm Thk

2шт.

Выбрано товаров: 22
