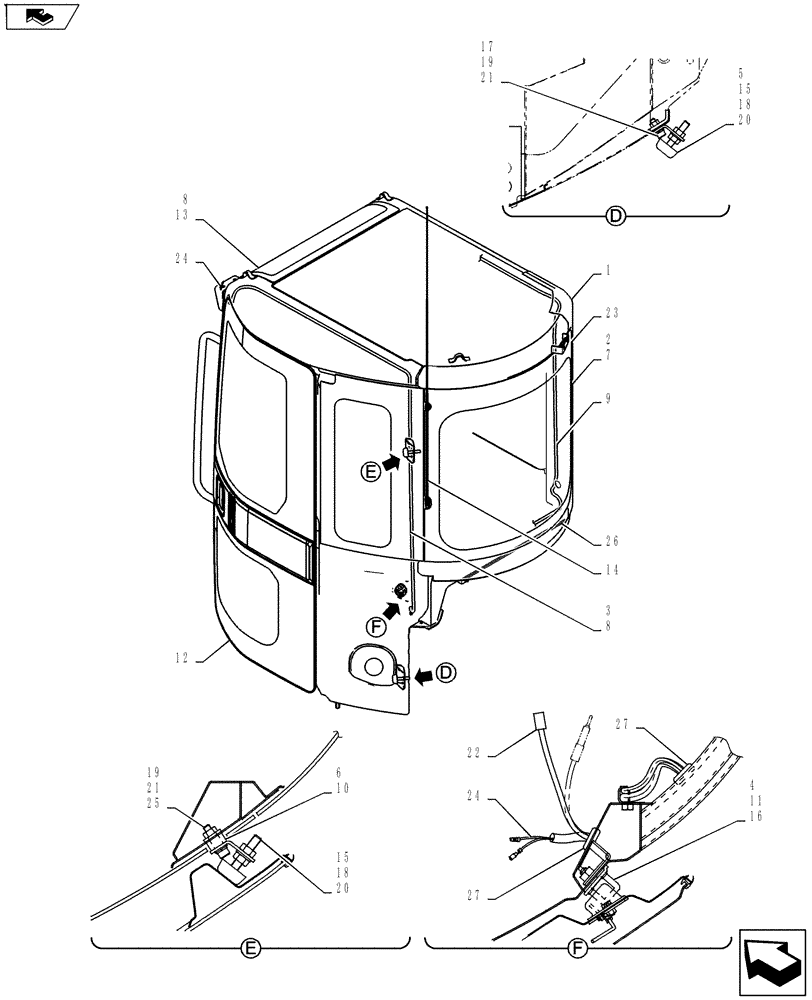

Запчасти Case CX27B ASN (90.150.02) - CAB INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Cab Install PM02C00040F1

1шт.

1

PW02C00078P1

CAB

1шт.

2

PW02C01205P2

GLASS

1шт.

3

PW02C01204P1

GLASS

Window, LH AFT Cab

1шт.

4

YT51C01021P1

HOOK

2шт.

5

PW02C01110P1

BRACKET

2шт.

6

PW02C01220P1

SPACER

2шт.

7

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

8

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

2шт.

9

PW02C01382P1

WIRE HARNESS

1шт.

10

PW02C01359P1

SEAL

Packing

2шт.

11

YT51C01077D1

SPACER

2шт.

12

PM51C00006F1%LD

LH CAB DOOR

Assy. (Amirac 1000 Black Lustrous)

1шт.

13

PW02C01293P1

GLASS

1шт.

14

PM54S00001P1

ANTENNA

1шт.

15

YT02C01066P1

STOP

4шт.

16

ZS68C10025

CAPSCREW

Cap

6шт.

17

ZS28C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

2шт.

18

ZN18F10008

NUT

4шт.

19

ZW26X08000

LOCK WASHER

Lock

14шт.

20

ZW16X10000

WASHER

2шт.

21

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

9шт.

22

PM02C01499P1

HARNESS

1шт.

23

YT51C01081D2

SEAL

1шт.

24

PW11E01034D1

HARNESS

1шт.

25

ZS28C08035

SCREW,Hex Socket Head, M8 x 35mm

Cap

2шт.

26

PW02C01353P1

WEATHERSTRIP

Weather

1шт.

27

PW02C01368P1

GROMMET

3шт.
