(90.120.01) - SEAT INSTALL

Запчасти Case CX27B ASN (90.120.01) - SEAT INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

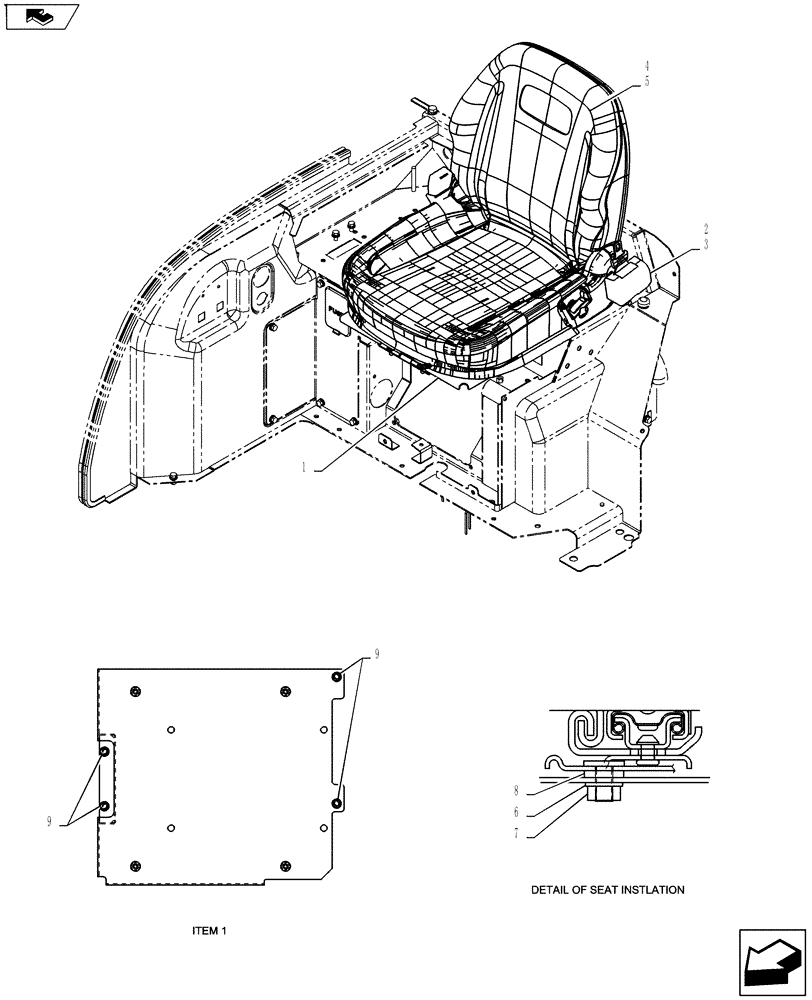

Схема запчастей Case CX27B ASN - (90.120.01) - SEAT INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
8
3
4
home
5
7
9
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Seat Install PW25M00029F1

1шт.

1

PW25M01081P1

COVER

1шт.

2

PW25M00015F1

SEAT BELT,48mm W x 1250mm L, Black

Assy.

1шт.

3

PA41C01005D2

BOLT (STEP)

Sems

1шт.

4

PW25M00014F1

SEAT

Assy.

1шт.

5

PW25M00014S001

HOLDER

Operator Manual

1шт.

6

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

7

ZN18C08007

NUT

4шт.

8

ZW16H08000

WASHER

4шт.

9

PA03M01093D2

BOLT

Sems

4шт.
