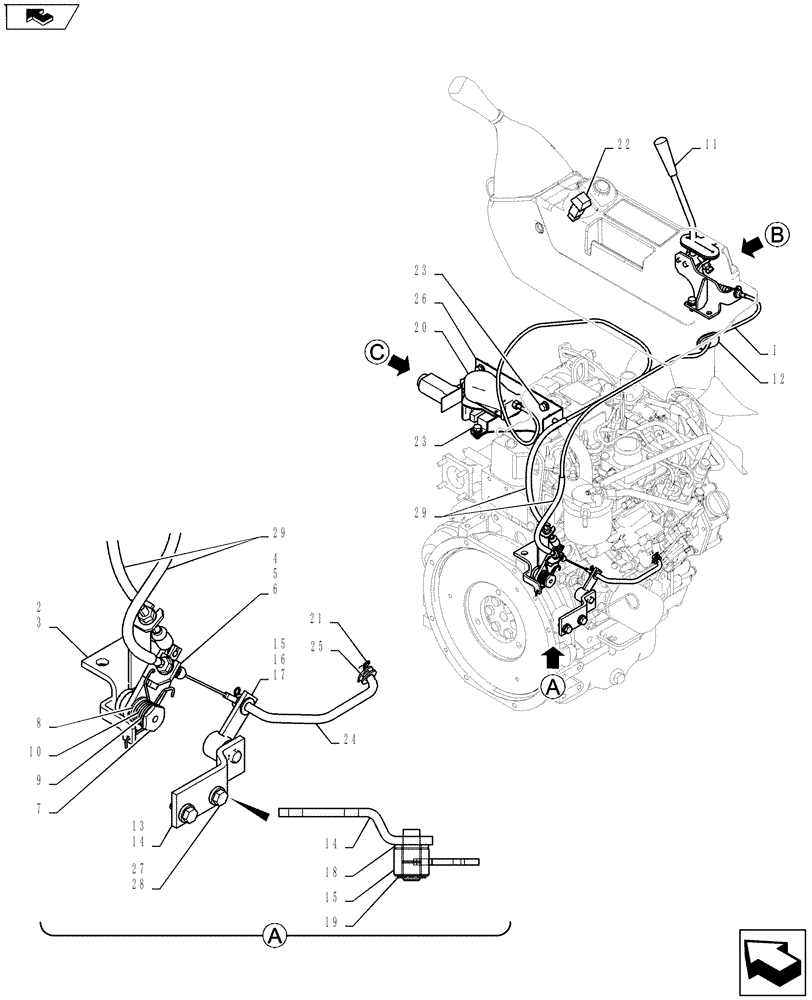

Запчасти Case CX27B ASN (10.101.01) - ENGINE CONTROL ASSY (DECEL) (10) - ENGINE

.

Control Assembly, Engine (Decel) PM11M00008F1

1шт.

1

PW11M01080P1

CABLE,1268mm L

Control

1шт.

2

PM11M01122F1

LINK

Assy.

1шт.

3

PM11M01118P1

BRACKET

1шт.

4

PM11M01123F1

LINK

Assembly, Incl 5 - 6

1шт.

5

PM11M01124P1

LINK

1шт.

6

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

7

PW11M01112P2

NUT

1шт.

8

PW11M01143P1

WASHER

1шт.

9

PW11M01144P1

WASHER

1шт.

10

PW11M01114P1

SPRING

1шт.

11

2406Z321

HANDLE

Grip

1шт.

12

PM11M01049P1

GROMMET

1шт.

13

PM11M01073F1

BRACKET

Assy.

1шт.

14

PM11M01070P1

BRACKET

1шт.

15

PM11M01072F1

LINK ASSY.

1шт.

16

PM11M01071P1

LINK

1шт.

17

2405R312D1210

BUSHING

2шт.

18

ZW16X12000

WASHER

1шт.

19

ZR36X01000

RING

Snap

1шт.

20

PM20S00010F1

GOVERNOR

Motor

1шт.

21

2419R9D2

COTTER PIN

2шт.

22

PM50S00005P1

SWITCH

Decel

1шт.

23

ZM22C08020

BOLT

Sems

8шт.

24

PM11M01125P1

LEVER

1шт.

25

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

26

PM11M01047P1

BRACKET

1шт.

27

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap, Serial Range: PV13-33453-PV13-33465

2шт.

27

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Start Serial: PV13-33466

2шт.

28

ZW16H08000

WASHER

, Serial Range: PV13-33453-PV13-33465

2шт.

29

PE13E01034D4

TUBE

2шт.
