(55.418.01) - GUAGE, CLUSTER

Запчасти Case CX27B ASN (55.418.01) - GUAGE, CLUSTER (55) - ELECTRICAL SYSTEMS

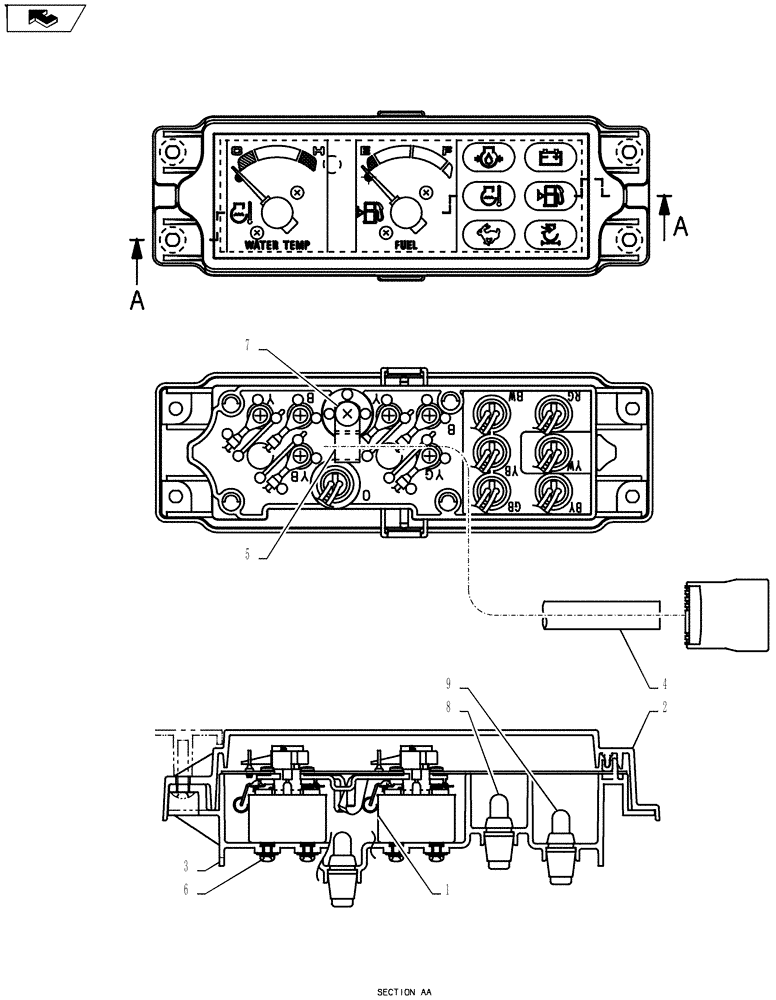

Схема запчастей Case CX27B ASN - (55.418.01) - GUAGE, CLUSTER (55) - ELECTRICAL SYSTEMS
6
home
9
5
8
4
7
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Guage, Cluster PW03M00092F1

1шт.

1

PH59S00005S001

GAUGE ASSY.

1шт.

2

PH59S00005S002

GLASS

1шт.

3

PH59S00005S003

CASE

1шт.

4

PH59S00005S004

HARNESS

1шт.

5

PH59S00005S005

CLIP

1шт.

6

PH59S00005S006

SCREW

Machine

6шт.

7

PH59S00005S007

SCREW

Machine

1шт.

8

PH59S00005S008

LAMP

6шт.

9

PH59S00005S009

LAMP

1шт.
