(55.404.05) - LIGHT INSTALL (CANOPY)

Запчасти Case CX27B ASN (55.404.05) - LIGHT INSTALL (CANOPY) (55) - ELECTRICAL SYSTEMS

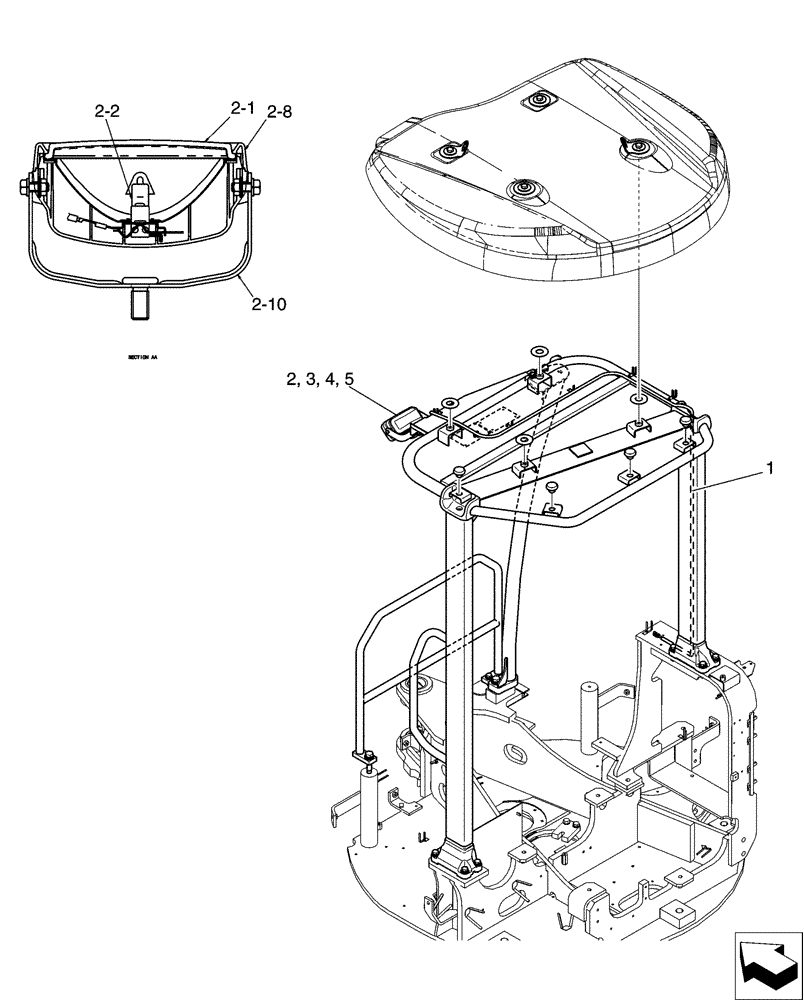

Схема запчастей Case CX27B ASN - (55.404.05) - LIGHT INSTALL (CANOPY) (55) - ELECTRICAL SYSTEMS
3
4
2-2
2-1
5
1
2
2-10
2-8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW80E00006F1

LIGHT

Instal, (Canopy)

1шт.

1

PW11E01026D4

HARNESS

1шт.

2

PW80S00003F1

LIGHT ASSY.

1шт.

2-1

PW80S00003S001

LAMP

1шт.

2-2

PW80S00005S010

1шт.

2-8

PW80S00003S008

RIM

1шт.

2-10

PW80S00003S010

STAY

1шт.

3

ZN17F12007

NUT

1шт.

4

ZW26X12000

LOCK WASHER

1шт.

5

ZW16X12000

WASHER

1шт.
