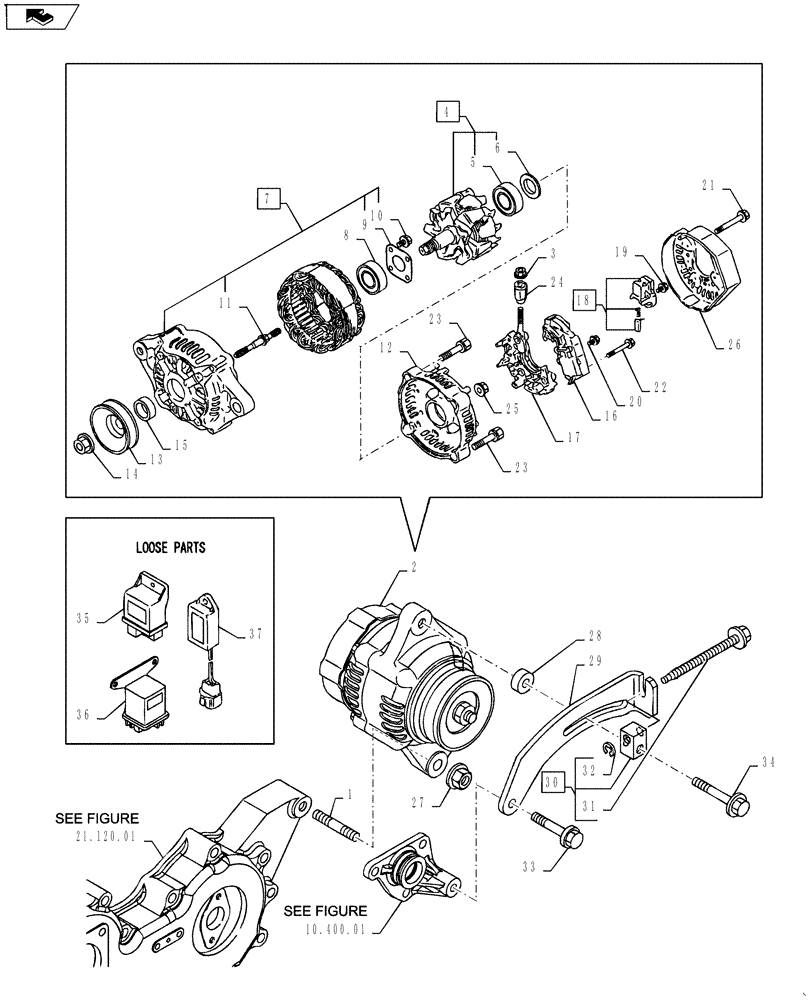

Запчасти Case CX27B ASN (55.301.02) - GENERATOR (55) - ELECTRICAL SYSTEMS

1

VV12979501900

STUD

1шт.

2

VV11962677210

ALTERNATOR,12V, 55 Amp

Includes Ref. 3-26

1шт.

3

VVX9490561001

NUT

1шт.

4

VV12905277380

ROTOR

Includes Ref. 5-6

1шт.

5

VV12350179240

BALL BEARING

1шт.

6

VV11962079250

COVER ASSY

Bearing

1шт.

7

VV12905277422

KIT

Includes Ref. 8-11

1шт.

8

VV11962079200

BALL BEARING

1шт.

9

VV11962079210

PLATE

Retainer

1шт.

10

VV11962079220

SCREW

4шт.

11

VV11962079230

BOLT

2шт.

12

VV12840177440

COVER

Rear End

1шт.

13

VV11962077461

PULLEY

1шт.

14

VV11962077471

NUT

1шт.

15

VV11962077490

COLLAR

1шт.

16

VV11962677710

REGULATOR

1шт.

17

VV12905279260

HOLDER

1шт.

18

VV12905279270

HOLDER

Brush

1шт.

19

VV11962079290

SCREW

6шт.

20

VV11962079300

SCREW

1шт.

21

VV11962079310

BOLT

3шт.

22

VV11962079320

SCREW

2шт.

23

VV11962079330

BOLT

2шт.

24

VV11962079340

FOAM INSULATION

1шт.

25

VV11962079350

NUT

2шт.

26

VV11962677450

COVER ASSY

End, RR.

1шт.

27

VV26306100002

NUT,M10

M10

1шт.

28

VV11994077270

SPACER

Generator

1шт.

29

VV12964277310

ADJUSTER

Belt

1шт.

30

VV12963077350

BLOCK

Adjuster, Includes Ref. 31-32

1шт.

31

VV12963077380

BOLT,M8 x 100mm

Adjust M8x100

1шт.

32

VV22272000050

CIRCLIP

E - 5

1шт.

33

VV26106080452

BOLT,M8 x 45mm

M 8X45 Plated

1шт.

34

VV26106080552

BOLT,M8 x 55mm

M 8X55 Plated

1шт.

35

VV11980277200

RELAY

Safety

1шт.

36

VV11965077910

RELAY

Glow

1шт.

37

VV12921177920

TIMER

Timer

1шт.
