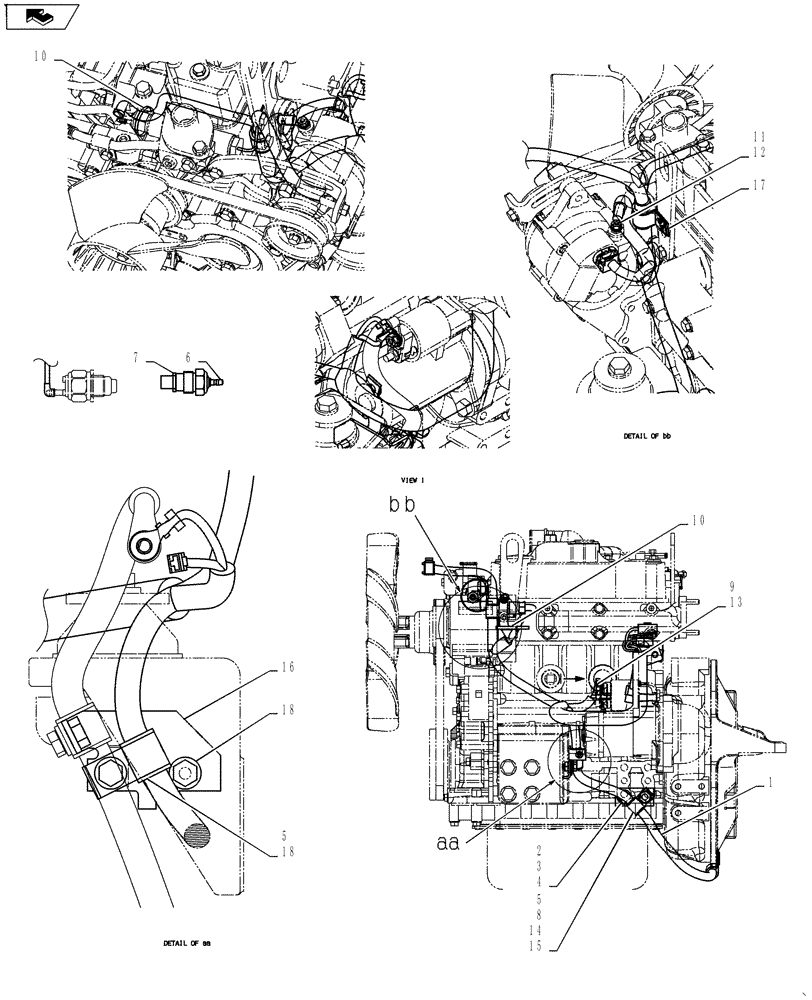

Запчасти Case CX27B ASN (55.100.06) - HARNESS ASSY, ENGINE (55) - ELECTRICAL SYSTEMS

.

Harness Assembly, Engine PM16E00006F1

1шт.

1

PM16E01026P2

WIRE HARNESS

1шт.

2

PM16E01022P1

PLATE

2шт.

3

ZS18C12020

SCREW,Hex, M12 x 20mm

Cap

2шт.

4

ZW16P12000

WASHER

2шт.

5

EW02E01015D6

CLIP

5шт.

6

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

7

PA13E01027P1

PACKING

1шт.

8

ZW16P10000

WASHER

3шт.

9

ZW16P08000

WASHER

2шт.

10

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

3шт.

11

ZW16P06000

WASHER

1шт.

12

ZN18C06005

NUT

1шт.

13

ZN18C08007

NUT

1шт.

14

ZN18C10008

NUT

2шт.

15

ZW26X10000

LOCK WASHER

1шт.

16

PV16E01011P1

BRACKET

1шт.

17

EW02E01015D8

CLIP

1шт.

18

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.
