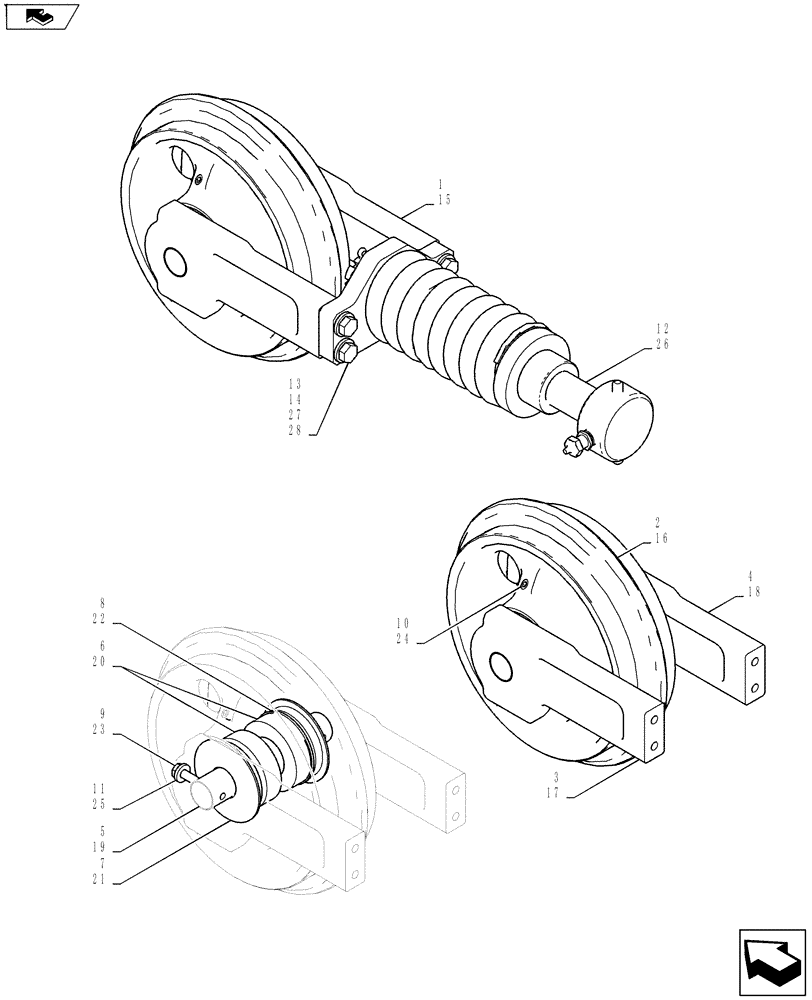

Запчасти Case CX27B ASN (48.134.01) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION

Idler Assembly, Crawler PV52D00005F1

1шт.

Idler Assembly, Crawler PV52D00006F1

1шт.

Idler Assembly, Crawler PV52D00009F1

1шт.

1

PV52D00013F1

IDLER,271mm OD x 461mm W

Assy.

1шт.

2

PV52D00008P1

IDLER

1шт.

3

PV52D01014P1

COLLAR

1шт.

4

PV52D01015P1

COLLAR

1шт.

5

PV52D01010P1

SHAFT

1шт.

6

PV64D01005P1

BEARING

2шт.

7

PW64D01013P1

SEAL,30mm ID x 85mm OD x 21mm Thk

2шт.

8

ZR26X07200

SNAP RING

1шт.

9

PV52D01011P1

SCREW

Cap

2шт.

10

PV52D01007P1

PLUG

1шт.

11

ZW16H08000

WASHER

2шт.

12

PV54D00008F1

IDLER

Adjust Assy.

1шт.

13

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

4шт.

14

ZW16H10000

WASHER

4шт.

15

PV52D00014F1

IDLER,271mm OD x 325.5mm W

Assy.

1шт.

16

PV52D00008P1

IDLER

1шт.

17

PV52D01014P1

COLLAR

1шт.

18

PV52D01015P1

COLLAR

1шт.

19

PV52D01010P1

SHAFT

1шт.

20

PV64D01005P1

BEARING

2шт.

21

PW64D01013P1

SEAL,30mm ID x 85mm OD x 21mm Thk

2шт.

22

ZR26X07200

SNAP RING

1шт.

23

PV52D01011P1

SCREW

Cap

2шт.

24

PV52D01007P1

PLUG

1шт.

25

ZW16H08000

WASHER

2шт.

26

PV54D00008F1

IDLER

Adjust Assy.

1шт.

27

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

4шт.

28

ZW16H10000

WASHER

4шт.
