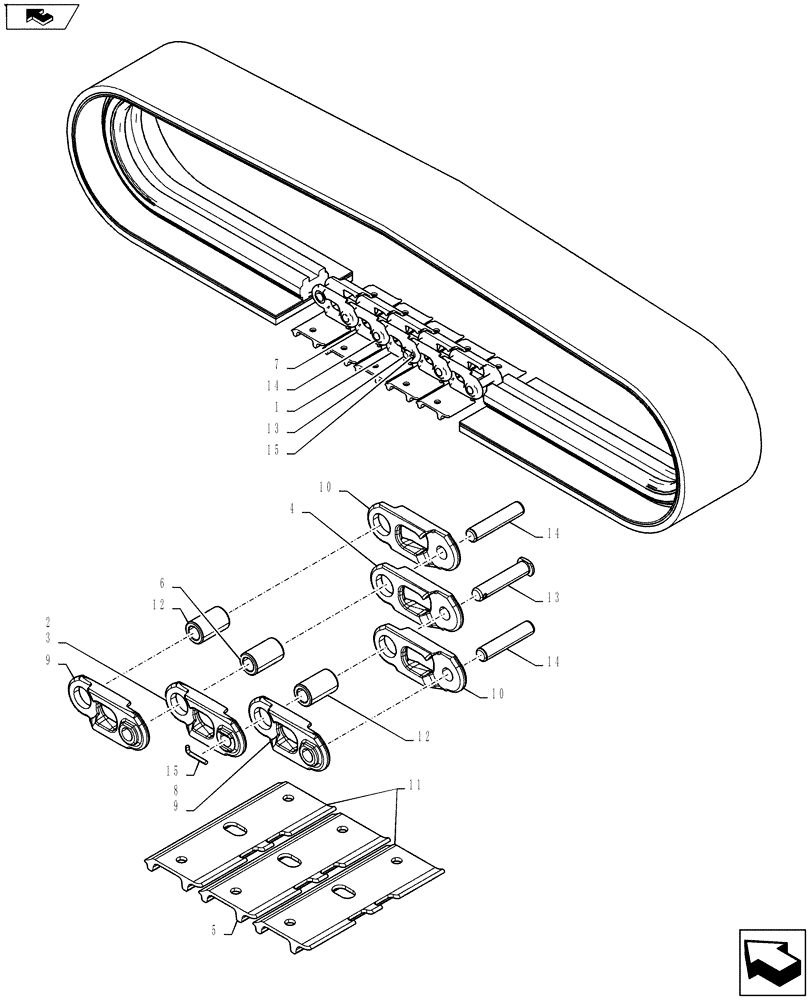

Запчасти Case CX27B ASN (48.130.01) - SHOE ASSY (48) - TRACKS & TRACK SUSPENSION

.

Shoe Assembly PV60D00008F1 (250mm W)

1шт.

.

PV60D00009F1

SHOE (ASSY)

Assy, Incl 2 - 15

1шт.

1

PM60D00017F1

TRACK SHOE

Assy, Master, Incl 2 - 6

1шт.

2

PM60D00019F1

SHOE

Master, Incl 3 - 5

1шт.

3

PM62D01003P1

TRACK LINK

Master (Left Hand)

1шт.

4

PM62D01004P1

TRACK LINK

Master (Right Hand)

1шт.

5

PM60D00015P1

PLATE

Master, Shoe

1шт.

6

PM62D01007P1

BUSHING

1шт.

7

PM60D00018F1

SHOE

Assy, Track, Incl 8 - 12

40шт.

8

PM60D00020F1

SHOE

Track, Incl 9 - 11

1шт.

9

PM62D00002P1

TRACK LINK

Track (Left Hand)

1шт.

10

PM62D00003P1

TRACK LINK

Track (Right Hand)

1шт.

11

PM60D00015P1

PLATE

Track, Shoe

1шт.

12

PM62D01007P1

BUSHING

1шт.

13

PM62D01006P1

PIN,18.93mm OD x 97.5mm L

Master

1шт.

14

PM62D01005P1

PIN,19.2mm OD x 92.5mm L

Track

40шт.

15

PM62D01008P1

PIN,5mm OD

Master

1шт.
