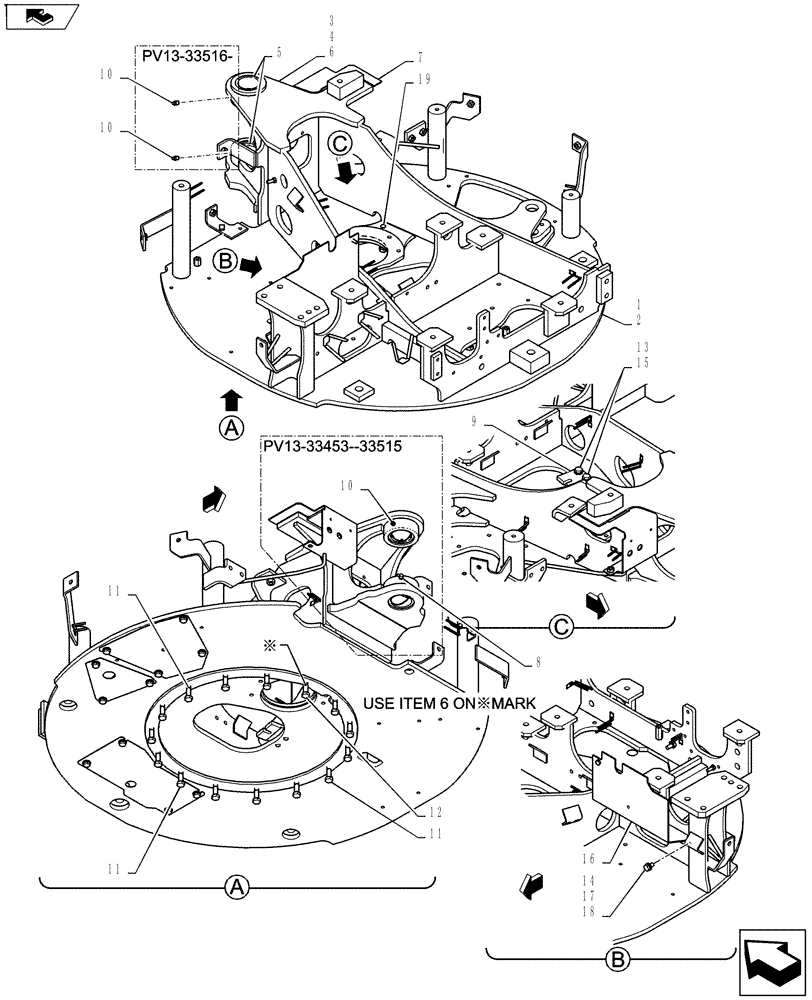

Запчасти Case CX27B ASN (39.101.01) - FRAME GROUP, UPPER (39) - FRAMES AND BALLASTING

Frame Group, Upper PM52F00041F1

1шт.

1

PM52F00045P1

Upp., Serial Range: PV13-33453-PV13-33515

1шт.

1

PM52F00045P2

Upp., Start Serial: PV13-33516

1шт.

2

PM52F00043P1

Upp.

1шт.

2

PM52F00043P2

Upp.

1шт.

3

PM52F01393F1

1шт.

3

PM52F01393F2

1шт.

4

PM52F01363P1

1шт.

5

PM52F01392P2

BUSHING

2шт.

5

PM52F01392P2

BUSHING

2шт.

6

PM52F01363P2

1шт.

7

PM52F01370P1

1шт.

7

PM52F01370P1

1шт.

8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease, Serial Range: PV13-33453-PV13-33515

1шт.

9

PM52F01202P1

STOP

1шт.

10

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease, Serial Range: PV13-33453-PV13-33515

1шт.

10

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease, Start Serial: PV13-33516

2шт.

11

ZS18C12060

SCREW,Hex, M12 x 60mm

Cap

14шт.

12

HS58C12070G2

BOLT

1шт.

13

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap, Serial Range: PV13-33453-PV13-33471

2шт.

13

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems, Start Serial: PV13-33472

2шт.

14

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

15

ZW16H12000

WASHER

, Serial Range: PV13-33453-PV13-33471

2шт.

16

PM52F01274P1

PLATE

1шт.

17

ZW26X10000

LOCK WASHER

2шт.

18

ZW16P10000

WASHER

2шт.

19

YN64H01391D1

CAP

2шт.
