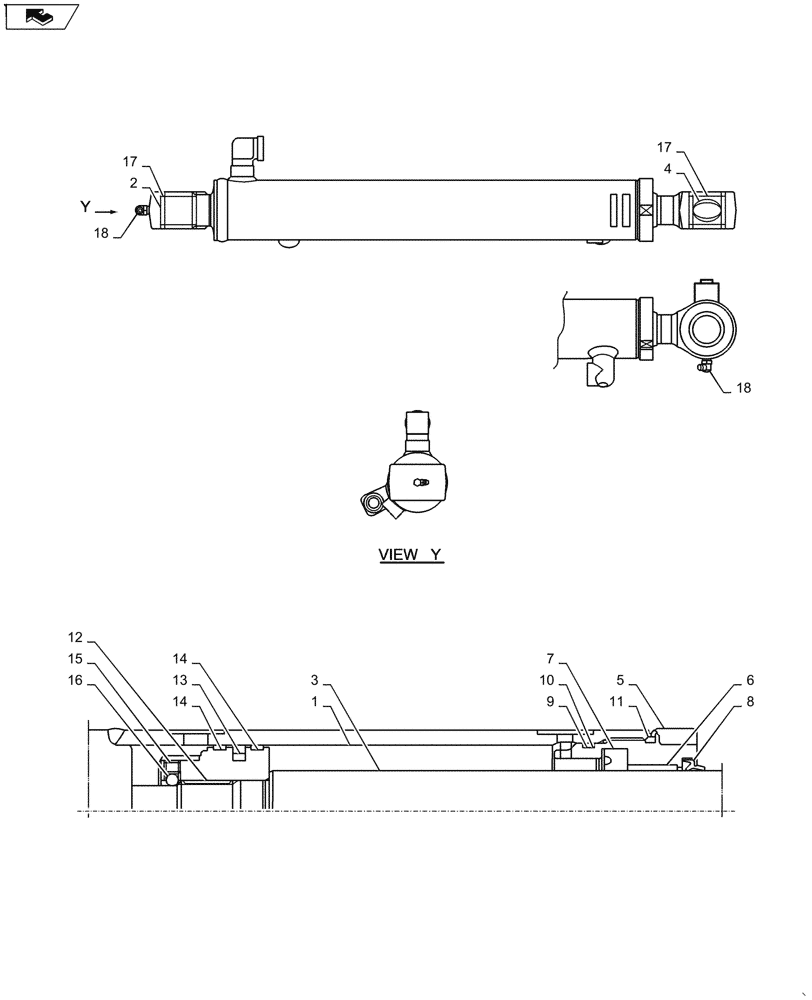

Запчасти Case CX27B ASN (35.730.09) - CYLINDER, ASSY (BUCKET) (35) - HYDRAULIC SYSTEMS

.

PV01V00076F1

HYDRAULIC CYLINDER

Optional Cylinder Assembly, W/ Head Cover, Incl 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

2

PV12B01185D2

BUSHING

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PB01V00003S002

BUSHING

1шт.

5

PV01V00074S005

CYLINDER HEAD

1шт.

6

PV01V00045S019

BUSHING

1шт.

7

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

1шт.

8

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

9

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

1шт.

10

PV01V00045S010

BACK-UP RING

1шт.

11

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

12

PV01V00045S012

PISTON

1шт.

13

2438U988S16

SEAL

Ring

1шт.

14

PV01V00063S014

RING

2шт.

15

2438U988S18

SET SCREW

1шт.

16

2438U988S19

BALL

1шт.

17

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

4шт.

18

PR01V00029S023

LUBE NIPPLE

2шт.

PV01V00076R100

REPAIR KIT

Consists Of Item: 1(1), 2(1), 17(2)

1шт.

PV01V00076R200

REPAIR KIT

Consists Of Item: 3(1), 4(1), 17(2)

1шт.

PV01V00045R300

REPAIR KIT

Consists Of Item: 7(1), 8(1), 9(1), 10(1), 11(1), 14(2)

1шт.
